Concrete core bore hole diamond drilling machines ground hole drilling machines

FOB Reference Price:Get Latest Price
$1,000.00 - $3,000.00 / Set | 1 Set/Sets Concrete core bore hole diamond drilling machines ground hole dr (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
HENG WANG
Model Number:
HW20
Usage:
core drill in concrete
Voltage:
GASOLINE
Weight:
120KG
Certification:
ISO
Type:
Core Drilling Rig
Power Type:
Gasoline
Dimension(L*W*H):
1080*780*1150mm
Power(W):
5hp/9hp/13hp
Name:
Horizontal Gasoline Concrete Core Drilling Machine for sale
Application:
Construction/road
Drilling depth:
400-5000mm
Product name:
Horizontal Directional Gasoline Concrete Core Drilling Machine
Model:
HW20
Drilling diameter:
200mm
Color:
Customised
Feature:
High Drilling Efficiency
Spindle Speed:
128
Engine:
Air Cooled Two Strokes
After-sales Service Provided:
No overseas service provided
Warranty:
2 Years
Supply Ability
Supply Ability:
1000 Set/Sets per Month Concrete core bore hole diamond drilling machines ground hole dr
Packaging & Delivery
Packaging Details
wooden case
Port
shanghai qingdao dalian shenhen ningbo
Lead Time :
within 3 days after receive your payment
Product Description

 HW-20 Series Pavement core drill machine is used to drill engineering sampling and hole of fixed  protective rail for the highway and municipal foundation.It uses gasoline engine as the power for easy start up, reliable running and simple operation, it is also equipped with synthetic diamond thin wall bit. The machine's drill bit is compatible with imported ones, the machine can achieve automatic core drilling.The max drilling depth is 700mm(with additional rod can reach max 1500mm) .For high-grade highway concrete, asphalt, limestone based on compressive strength, bending experiment research core is very ideal.



 Features

1). Use imported gasoline engine, drive conveniently, run reliably, operate simply
2). No need electric power
3). equipped with man-made PCD thin drilling bit
4). Boring and sampling size accurately
5). The surface is smotth after boring, don't damage the drill materials

Technical   Parameter
1, Model: HZ-20 type
2, the largest drilling core diameter: Φ200mm
3, the maximum drilling core depth: 400-5000mm (can be equipped with extension rod 30 cm / root)
4, drilling direction: vertical down
5, feed mode: manual, automatic
6, the spindle speed: 800-1200
7, drill form: artificial diamond thin-walled drill
8, supporting power: gasoline engine
Brand: Yamaha
Gasoline Engine Model: MZ-175 MZ-250
Brand: Honda
Gasoline Engine Model: Gx160 Gx270
Power: 3.3KW-6.5KW
Number of revolutions: 3600r / min
9, Dimensions L × W × H: 1080 × 780 × 1150mm
10, weight: 120kg

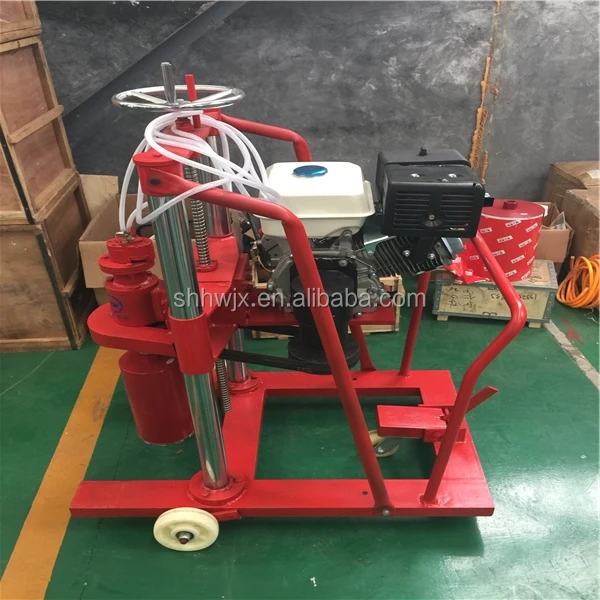

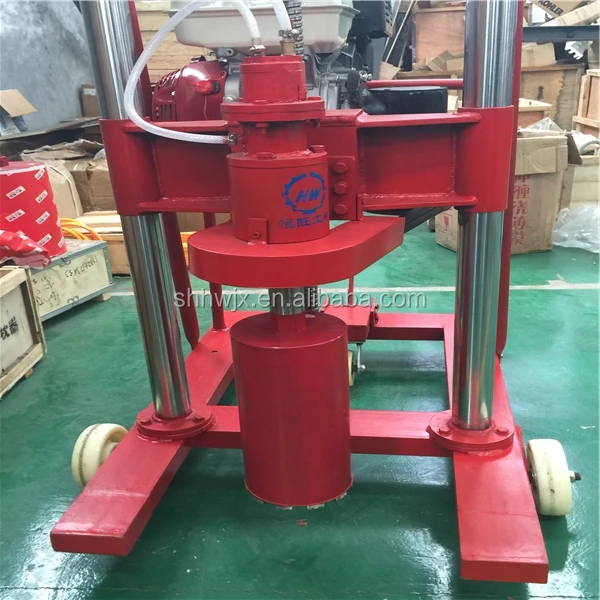

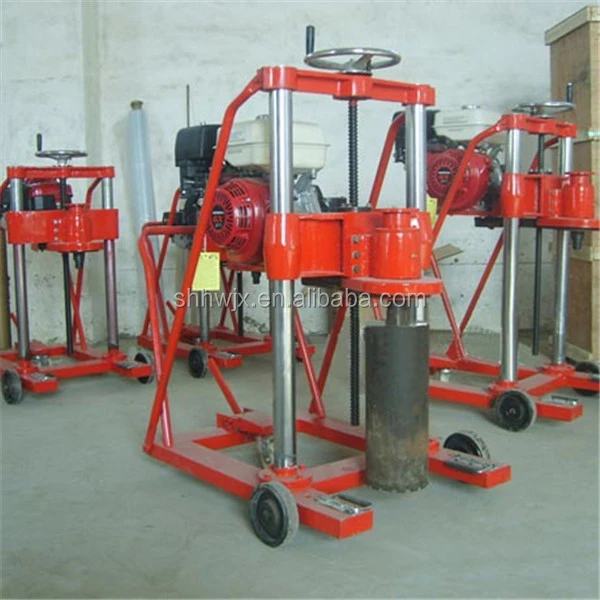

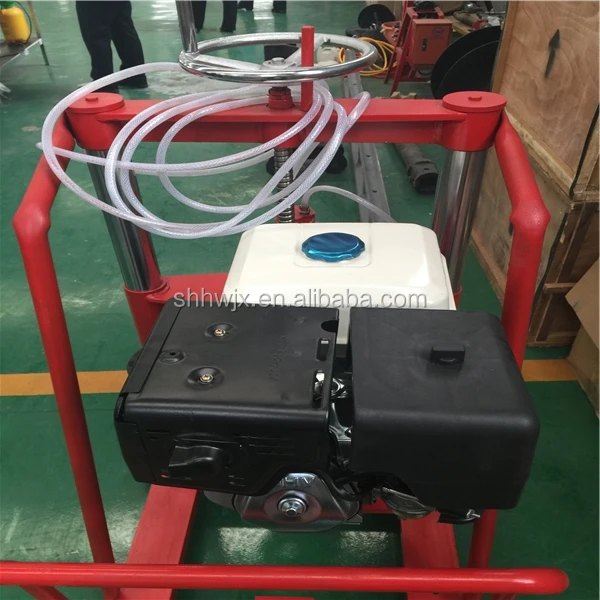

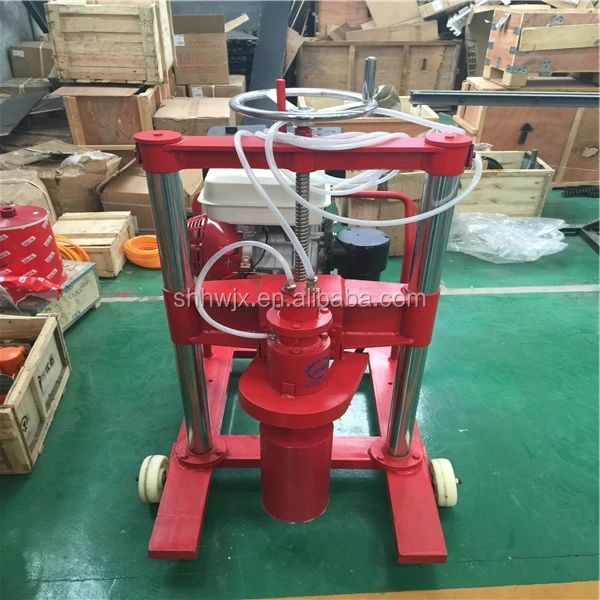

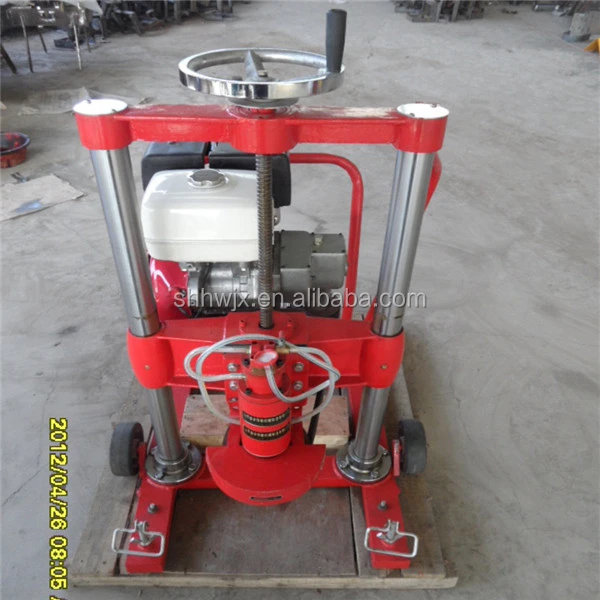

Figure Machine (1).JPGFigure Machine (2).JPGFigure Machine (3).JPGFigure Machine (4).JPGFigure Machine (5).JPG (2).jpg (3).jpg
