ground mini screw fence post pile driver hydraulic guardrail piling driver

FOB Reference Price:Get Latest Price
$9,800.00 - $12,000.00 / Set | 1 Set/Sets ground mini screw fence post pile driverr hydraulic guardrai (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Piling Speed(m/min):
2m/min
Efficiency:
High Efficiency
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
HENG WANG
Model Number:
HW-22
Weight:
3640KG
Certification:
ISO
Dimension(L*W*H):
4000*2200*2900mm
Name:
fence post pile driverr hydraulic guardrail piling driver
Application:
Pile Driving
Product Name:
Guardrail Pile Driving Machine
Type:
Deep Foundation Machinery
Drill diameter:
110-200mm
Item:
Pile Driving Rigs
Usage:
Guard Beam Post Install Machine
Color:
Customer's Requirement
Hydraulic hammer model:
YC260
Drilling depth:
1.4-2.6m
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
1000 Set/Sets per Month ground mini screw fence post pile driverr hydraulic guardrai
Packaging & Delivery
Packaging Details
wooden case or non
Port
shanghai qingdao dalian shenzhen ningbo
Lead Time :
within 3 days after receive your full payment
Product Description



 Loader type fence Piling machine is set loading, piling, drilling and other functions as one of the new products. Using a new design concept, carefully developed the overall function, structural modularity of the design concept, the whole closed wooden installation structure, more conducive to rapid installation and transition products can be widely used in highways, high road and other roadway pile hole drilling jobs.

Technical  Parameter

Hydraulic hammer weight (Kg) 150
Hydraulic hammer impact frequency (times / min) 500-900
Hydraulic hammer working flow (L / min) 60-100
Hydraulic hammer working pressure (MPa) 13-15
Diesel power (Kw) 37

Hydraulic system flow (L / min) 110
Rated system pressure (MPa) 15
Tread (mm) 1500
Dimensions (L * W * H) (mm) 4000 * 2200 * 2900
Machine quality (Kg) 3640
Travel speed (Km / h) 26
Drilling technical parameters:
Model 490
Hydraulic system flow (L / min) 110
Rated system pressure (MPa) 15
Tread (mm) 1500
Dimensions (L * W * H) (mm) 4000 * 2200 * 2900
Drilling diameter (mm) φ120-φ200
Drilling speed (mm / min) 800-2000
Impactor impact frequency (times / min) 800-1200
Air compressor air pressure (MPa) 0.7-1.0
Air compressor air consumption (m3 / min) 10-13 (external)

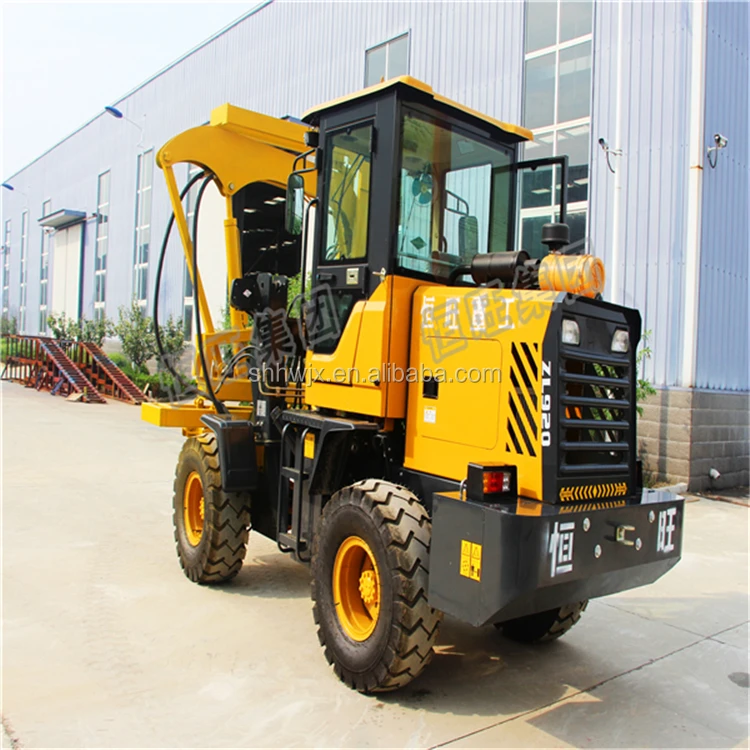

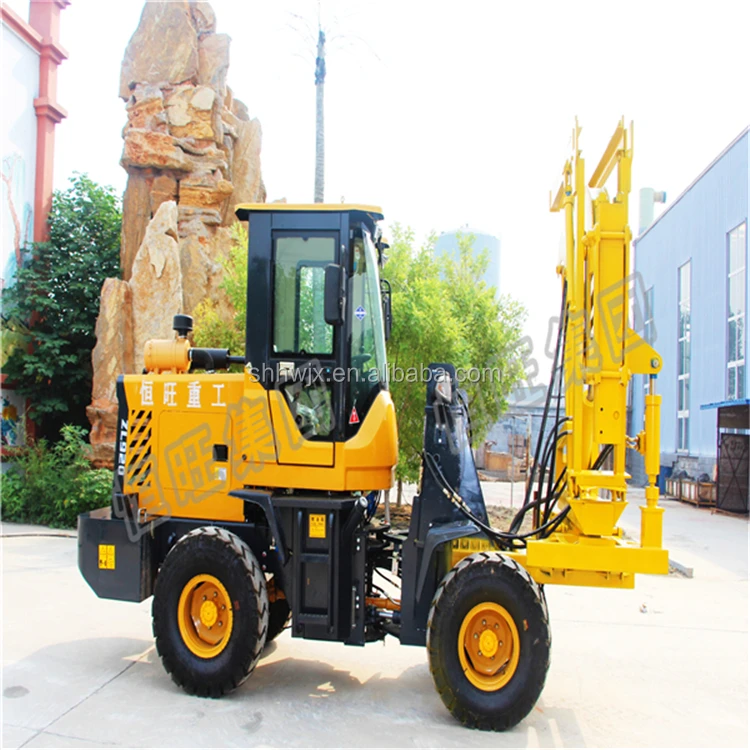

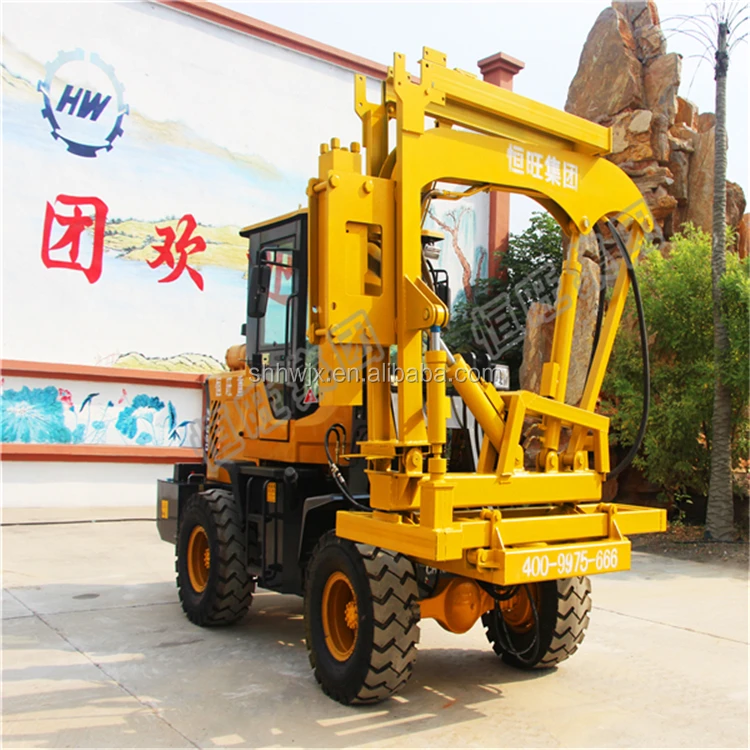

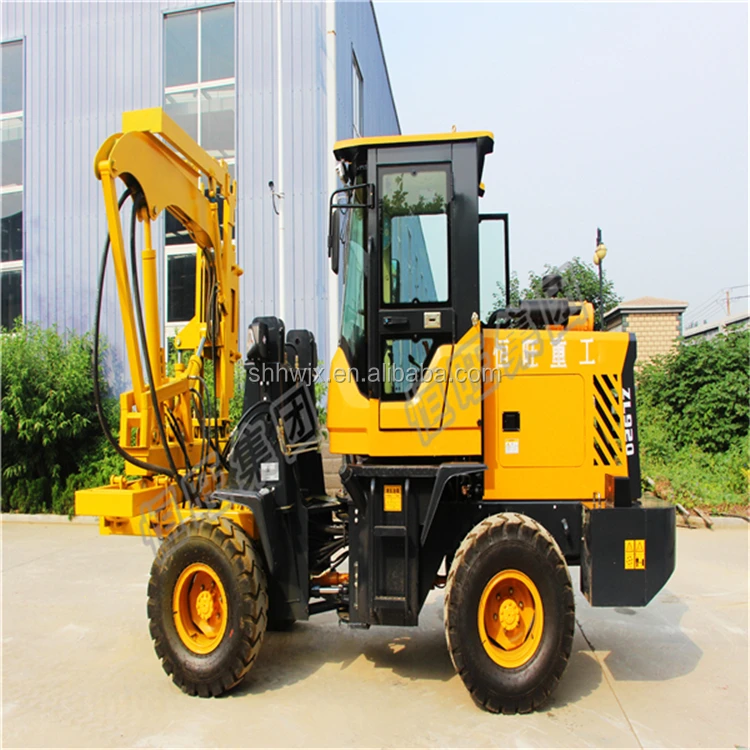

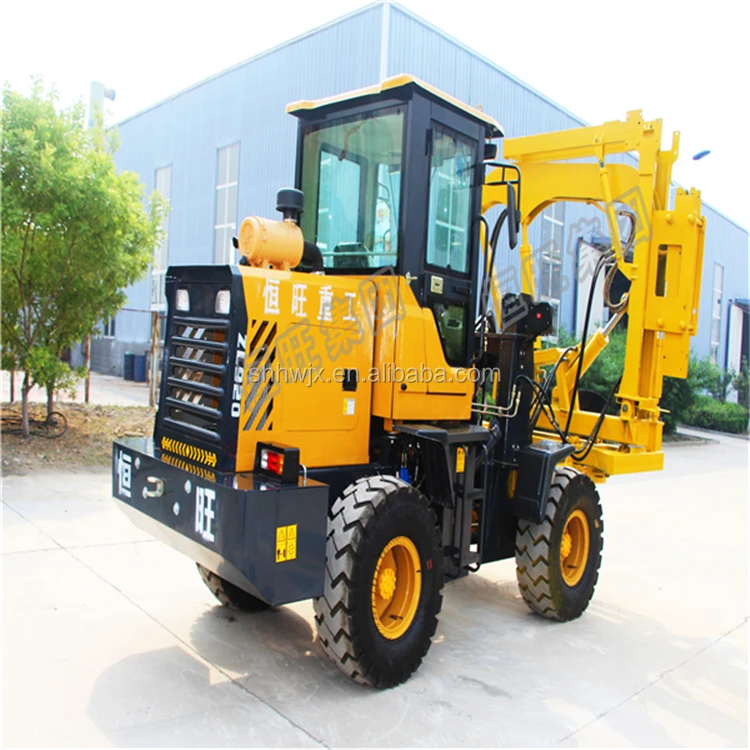

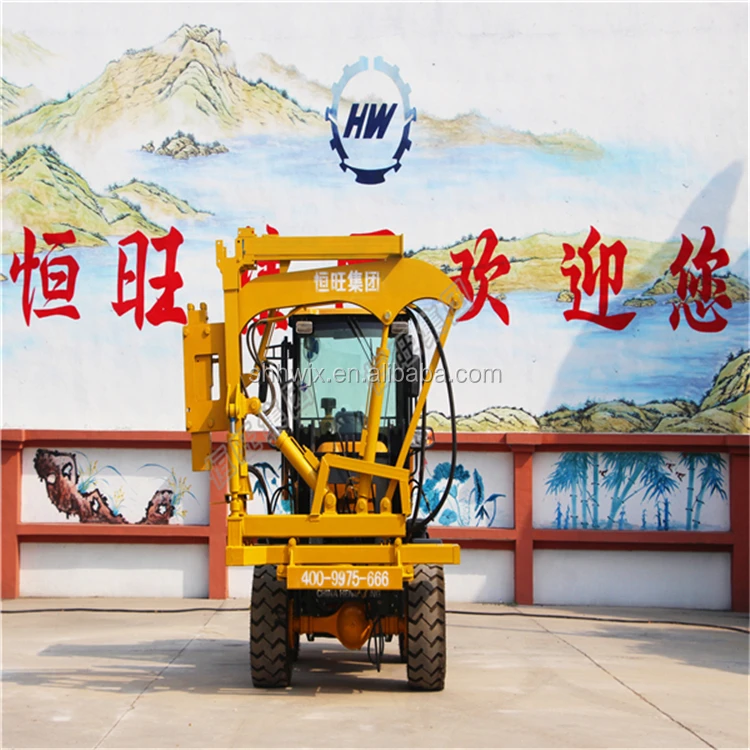

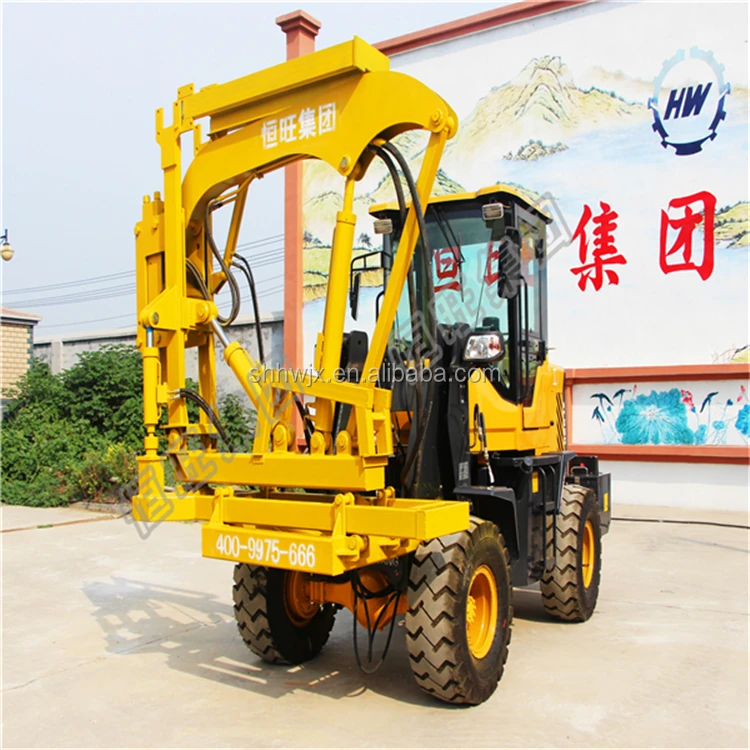

The   Real  Picture
