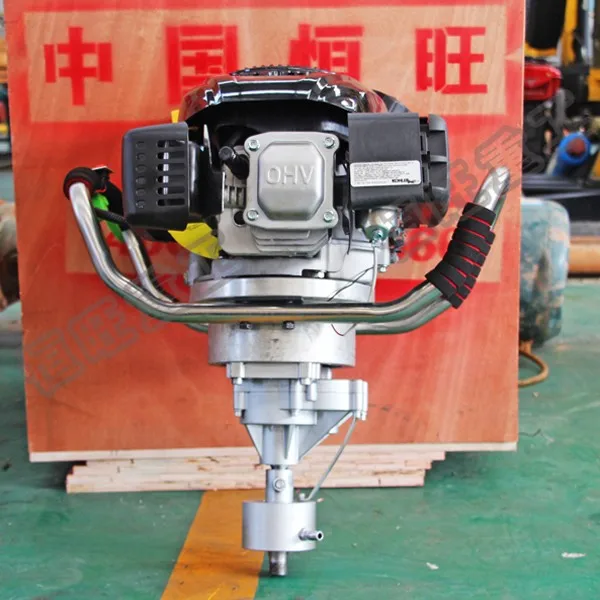

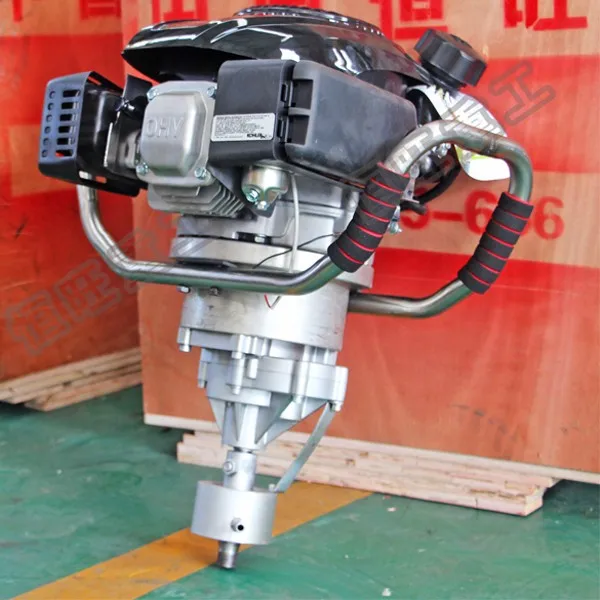

gasoline engine portable backpack core sample drilling rig for sale
-
1 - 9 Sets
$4,999.00
-
>=10 Sets
$1,999.00
- Model Number:
- HW-B30
- Power:
- 7.75hp
- Lead Time:
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 7 Negotiable
- Condition:
-
New
- Type:
-
Core Drilling Rig
- Power Type:
-
Gasoline
- Place of Origin:
-
Shanghai, China
- Brand Name:
-
Hengwang
- Usage:
-
Coal
- Voltage:
-
220V/380V
- Dimension(L*W*H):
-
3800*2400*3200mm
- Weight:
-
25kg
- Certification:
-
ISO, ISO
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
- Name:
-
gasoline engine portable backpack core sample drilling rig for sale
- Color:
-
Customized
- Port:
-
Shanghai/ Ningbo/ Dalian/ Qingdao
- MOQ:
-
1 set
- Application:
-
mineral exploration, coal, geological prospecting, construction, well
- Drilling depth:
-
30m
- Engine:
-
KOHLER
- Spindle Speed:
-
2800 R/min
- Drilling diameter:
-
32-108mm
- Supply Ability:
- 1000 Set/Sets per Month gasoline engine portable backpack core sample drilling rig for s
- Packaging Details
- 1. Wooden case and iron construction packing;
2. backpack core As per your requirements
- Port
- Shanghai/ Ningbo/ Dalian/ Qingdao
- Lead Time :
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 7 To be negotiated
Online Customization
Product Application
The backpack core drill is a ideal tool for environmental mineral, oil, gas exploration and geotechnical field investigation because it can be used in otherwise difficult of access locations behind buildings, fences and walls, trees, escarpments and much else. The diamond core bits of the system are easily capable of advancing borings through a large array of subsurface materials including steel reinforced concrete, hard rock and some kinds of cemented gravels.
The drill has many field applications including precious and basic metals, academic, environmental, geotechnical investigation, construction, treasure hunting, fossil fuels, quarry stone, and well.
Name | gasoline engine portable backpack core sample drilling rig for sale |
Model | HW-B30 |
Drilling depth | 30m |
Drilling diameter | 32-108mm |
Adaptation geological | soil, loose cover, all kinds of rock |

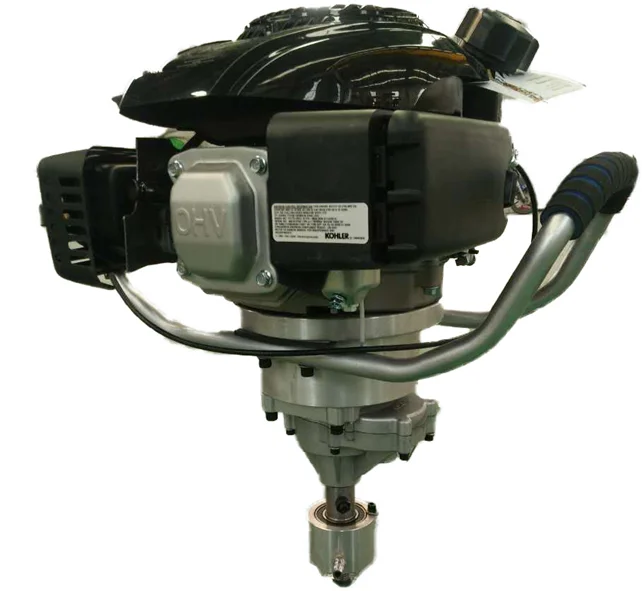

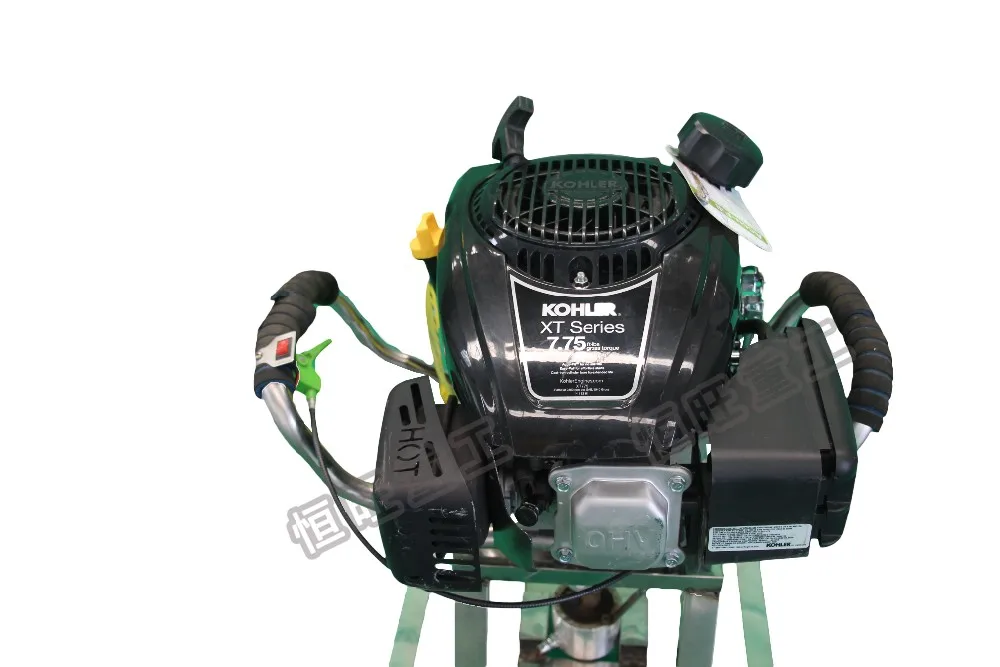

Engine type | KOHLER XT775, gasoline engine |
Oil consumption | 0.3L/min |
Rated speed | 2800r/min |
Power | 7.75hp |
Drill pipe material | titanium |
Weight | 25kg |
Drilling Speed for Different Geology: | killas: 119mm/min |
Basalt: 127mm/min | |
Sandstone: 130mm/min | |
Dolomite: 226mm/min | |
Limestone: 241mm/min |





Main Features.
1). For mountains, the traffic inconvenience, lack water areas ,it's easy to use.
2). Easy to carry a whole set of drilling rig and spare parts into the backpack, a standard set of portable drilling machine and its accessories is not more than 25 kg weight.
3). All equipment used in drilling and collect all kinds of rock samples of tools are available in a backpack, a normal adult men and women all can easily afford.In addition, the bags have enough space to spare fuel, potable water, and personal items.
4). The operation is flexible as long as simply rotate and push and pull, no additional tools, can be linked or extend the whole device, easy disassembly drag. Coupled with the core draw, can quickly and thoroughly remove core and core fragments.
5). Quick drilling, our drilling rig is a patented product in China, drill through a variety of rock surface efficiency is unique, special formula of diamond bit has a sharp notch, save time and effort, and ensure the service life of enough.







Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging: 1. Wooden case and iron construction packing;
2. As per your requirements.
Shipping: 1. professional goods shipping forwader;
2. port: Shanghai, Qingdao, Dalian, Ningbo.
Delivery: within 3-5 days after receiving the payment.
