Cement Concrete Mixer Pump Trailer Hydraulic portable concrete mixer and pump

  • 1 - 19 Sets
    $3,520.00
  • >=20 Sets
    $2,980.00
Model Number:
HBT10
Power:
15kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Power Type:
Electric
Max. horizontal conveying distance:
150M
Max. vertical conveying distance:
60M
Productivity:
18M³/H
Applicable Industries:
Building Material Shops, Farms, Home Use, Construction works , Energy & Mining
After Warranty Service:
Video technical support, Online support
Local Service Location:
South Korea, Sri Lanka
Showroom Location:
None
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Hengwang
Weight:
600kg
Dimension(L*W*H):
1750*700*1200mm
Certification:
ISO, ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
UNIQUE SELLING POINT:
High operating efficiency
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Pump
Model:
HBT10
MOQ:
1set
Application:
Construction
Max Vertical Delivery Distance:
20-30m
Max Horizontal Delivery Distance:
40-50m
Max.Aggregate Size:
15mm
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Wooden case;
2. As per your requirements
Port
Shanghai/ ningbo/qingdao/dalian
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

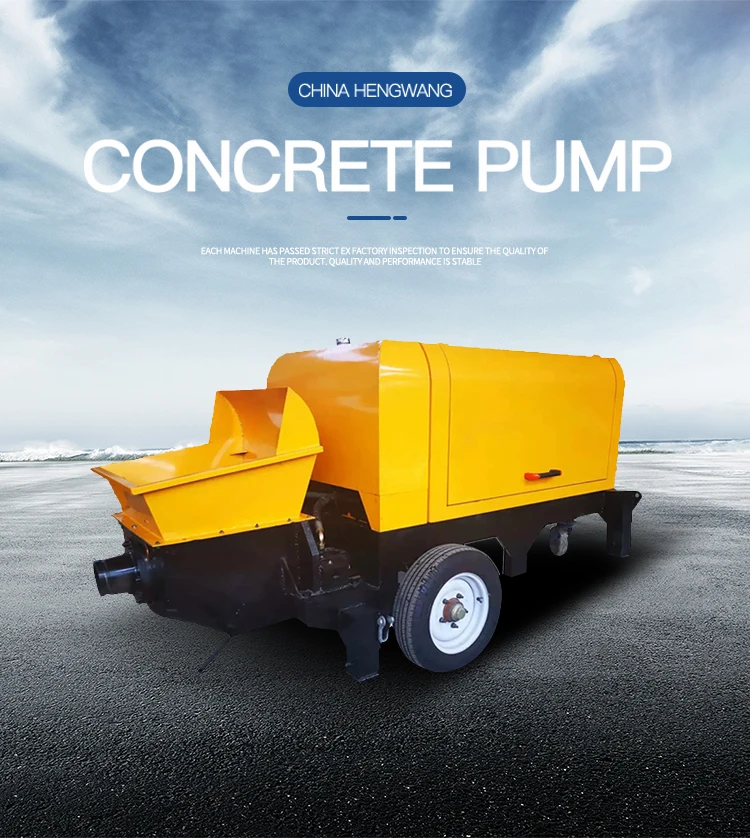

hydraulic system concrete pump; lightweight concrete pump for sale


Concrete trailer pump is a set of mechanical, electrical and hydraulic technology as one, with reliable performance of smooth operation and strong pumping capability. Reliability and stability is guaranteed by automatic engine regulation.


1) Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
2) Convey all kinds of engineering construction in the plain concrete, fiber concrete.
3) Conveying or injection of refractory and thermal insulation material;
4).Conveying or jet of greening soil on the construction of ecological environment;
5). Conveying or injection of plain concrete and fiber concrete for all kinds of engineering construction.

Technical Parameters
Name
Cement Concrete Mixer Pump Trailer Hydraulic portable concrete mixer and pump
Model
HBT10
HBT20
HBT30
Power
15kw
22kw
30kw
Voltage
380V
380V
380V
Max.Aggregate Size
15mm
20mm
30mm
Max Vertical Delivery Distance
20-30m
50m
80m
Max Horizontal Delivery Distance
40-50m
80m
120m
Delivery Capacity
5-6m3/h
10-12m3/h
20-25m3/h
Cylinder Stroke
350mm
650mm
650-850mm
Outlet diameter
80mm
120mm
150mm
Diameter of Delivery Pipe
80mm
100mm
125mm
Steel pipes
10m
10m
1200kg
Hoses
10m
10m
20m
Total Weight
600kg
900kg
10m
Overall Dimension (L*W*H)
1750*700*1200mm
2100*780*1200mm
3100*1500*1600mm

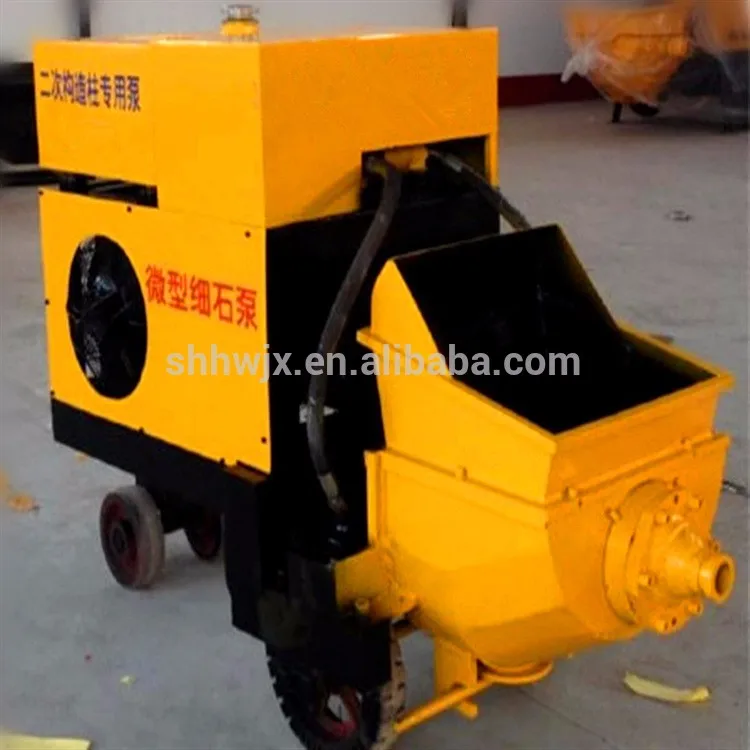

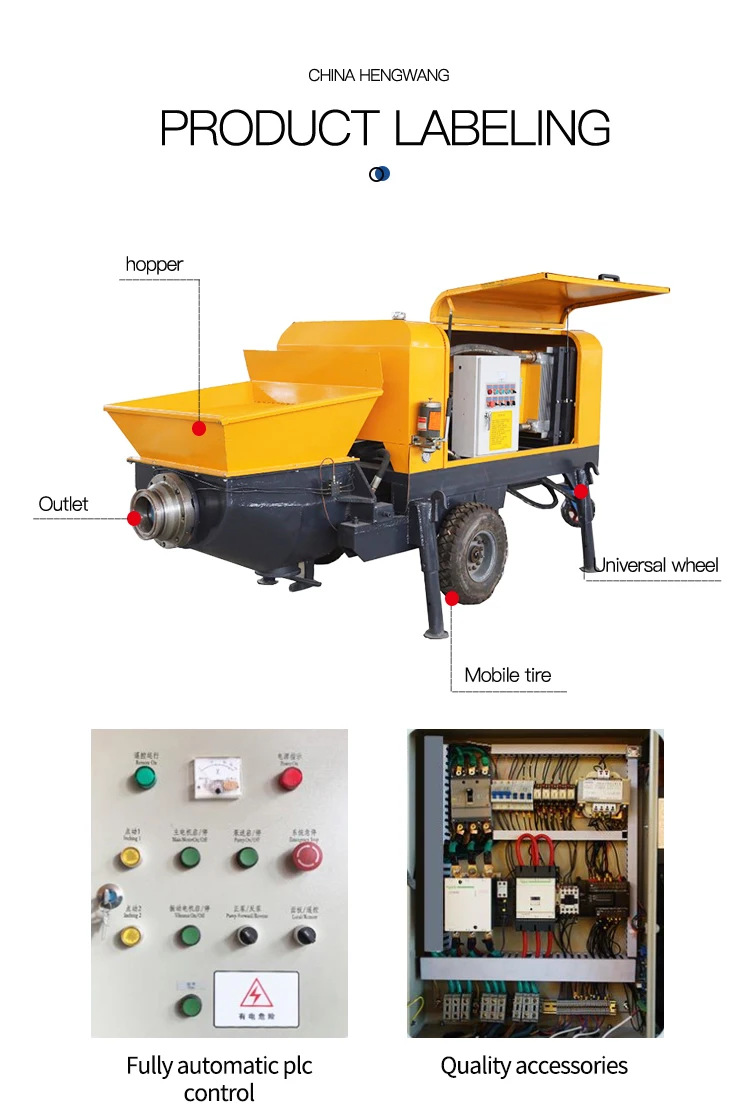

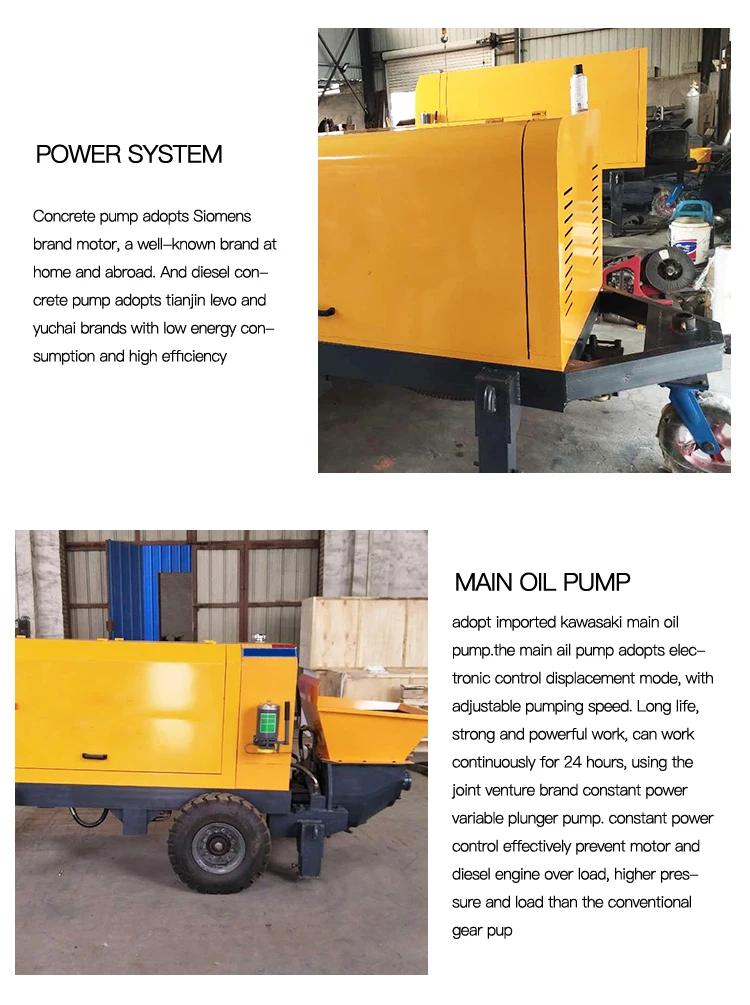

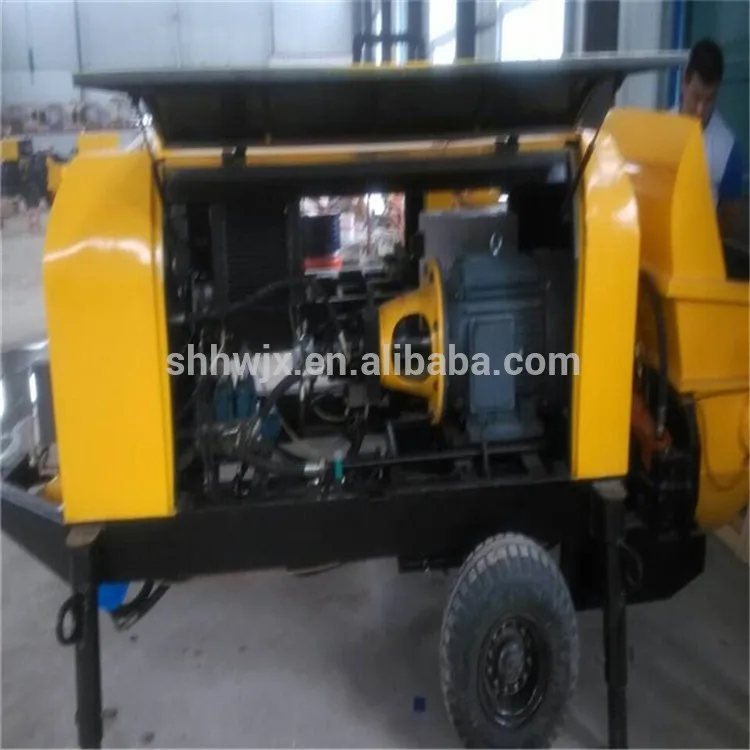

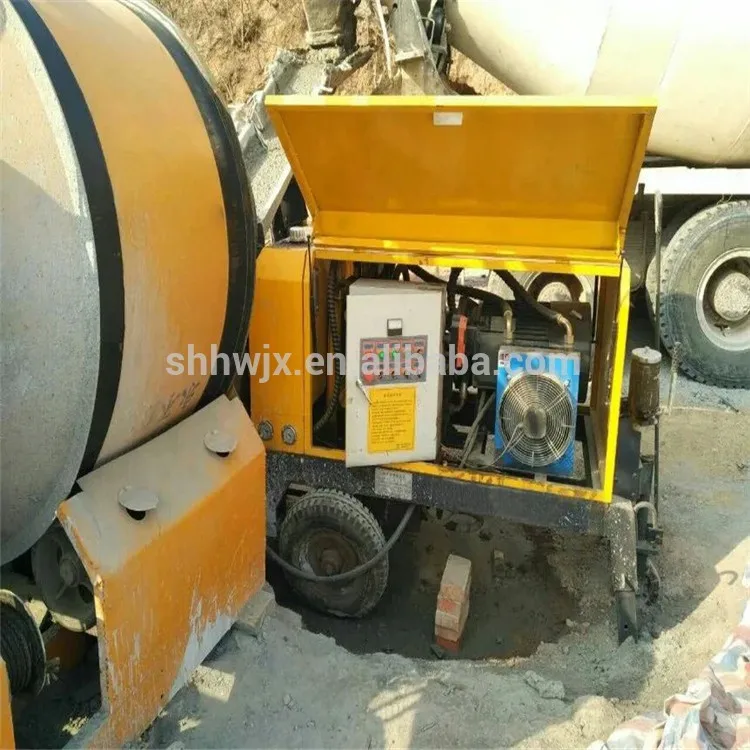

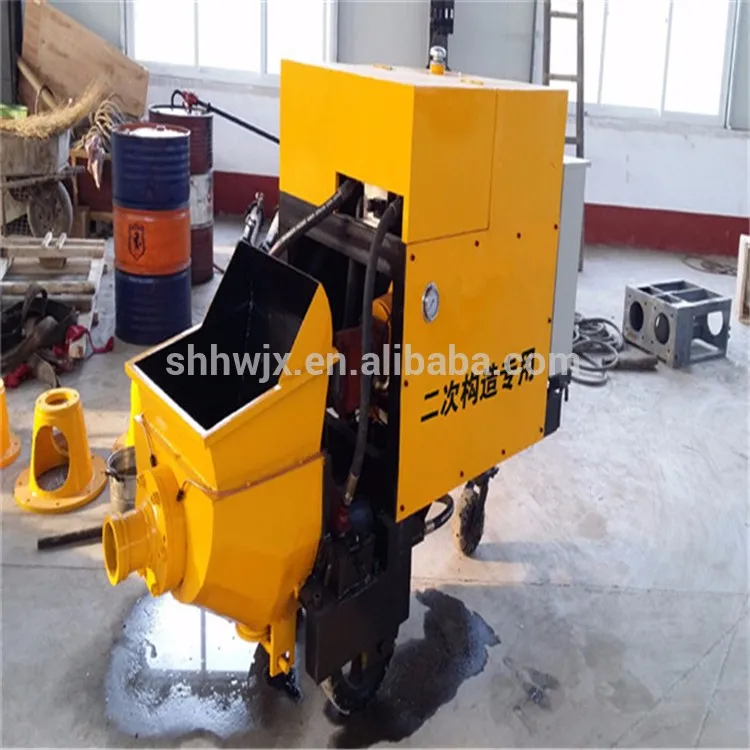

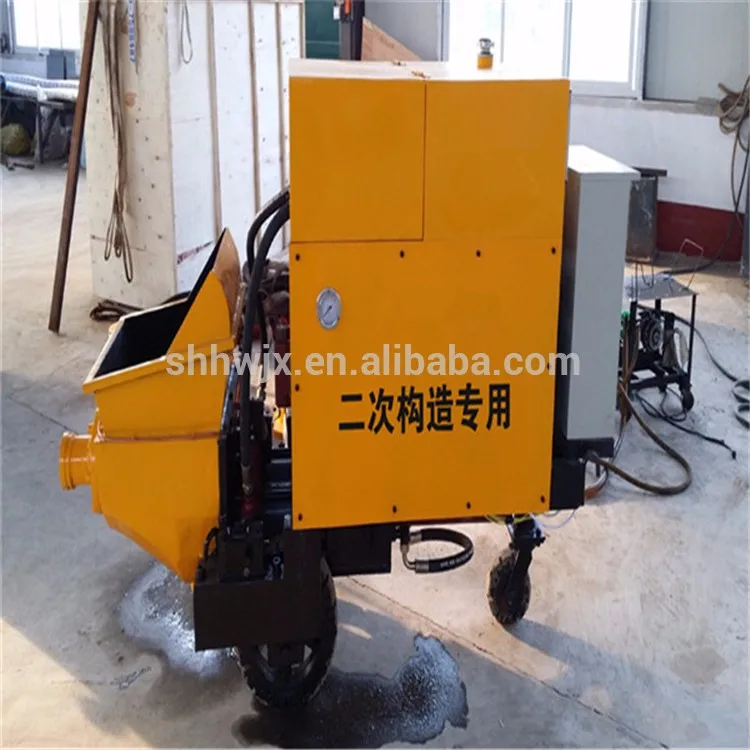

Details Images

Main Features


1.Outlet pressure is high, which satisfy the high building construction and long distance transmission requirements.


2.Reverse pumping function can facilitate cleaning the conveying pipe.


3.Most electrical appliance components of electrical system are imported, and PLC for control system,with reliable working,strong adaptability,and wired remote control;


4.Automatic lubricant filling device can eliminate the trouble of manual filling and extend the service life of the parts with less abrasion in the lubricants.

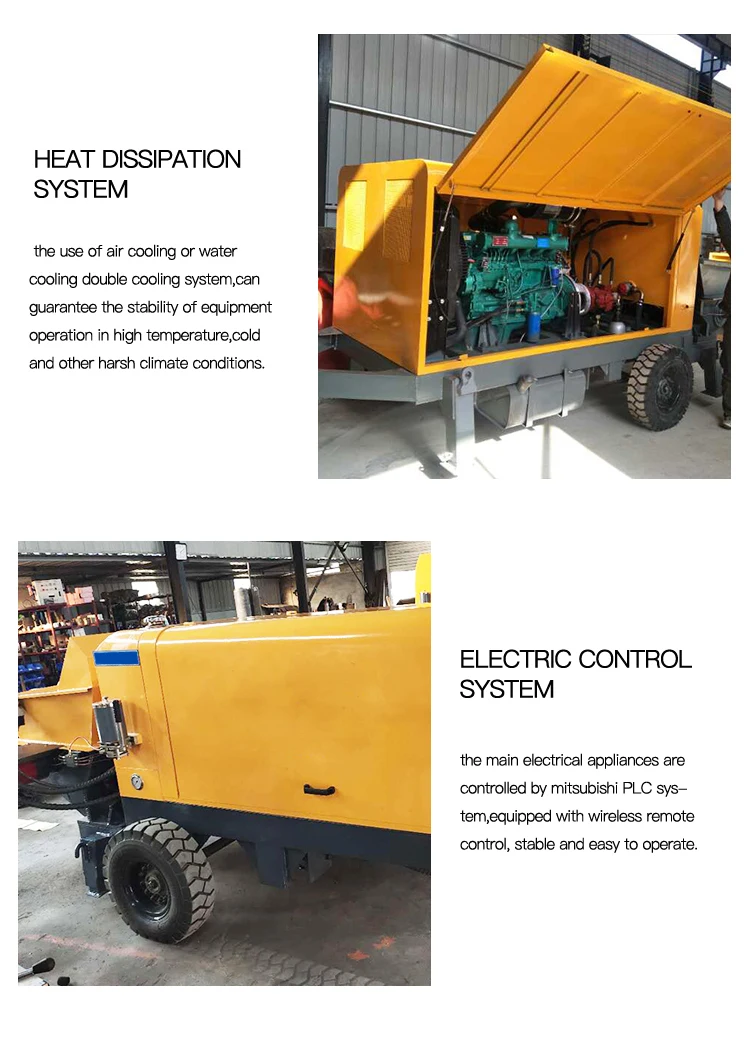

5.Cooling menthod adopts air cooling,with super strong chilling performance,keeping the oil temperature less than 600 under the air temperature of the whole year.

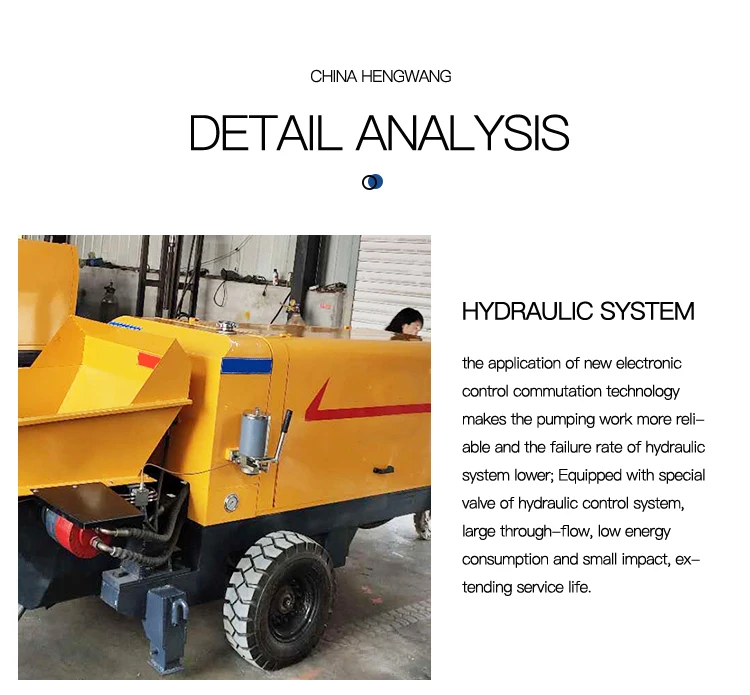

6.Hydraulic system adopts U return circuit, reversing is fast and efficient.
