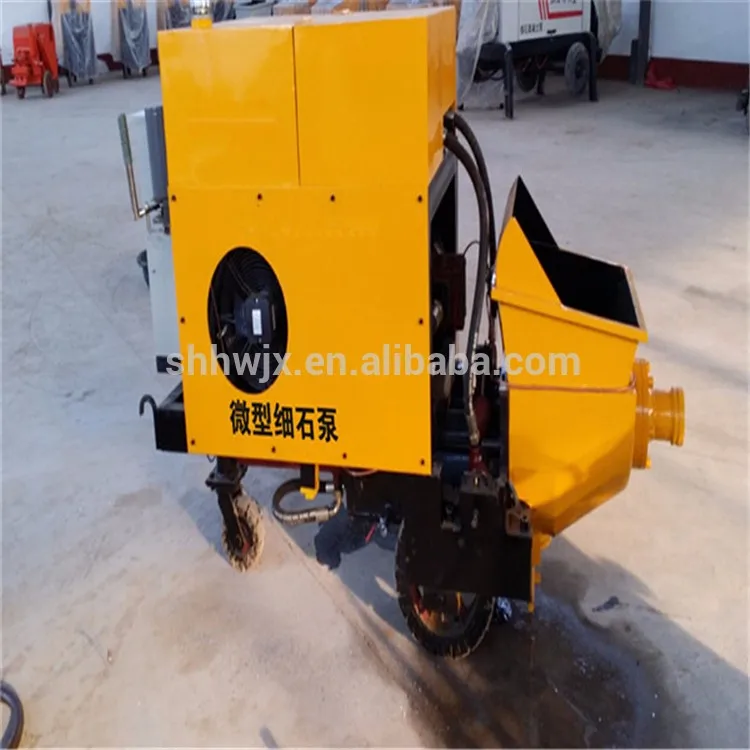

concrete pumping machinery trailer mounted concrete pump

FOB Reference Price:Get Latest Price
$2,800.00 - $4,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
HBT-10
Power:
15kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power Type:
Electric
Applicable Industries:
Construction works
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Place of Origin:
China
Brand Name:
Hengwang
Weight:
600kg
Dimension(L*W*H):
1750*700*1200mm
Certification:
ISO
Warranty:
12 Months
UNIQUE SELLING POINT:
High operating efficiency
Application:
Construction
Type:
Construction Device
Concrete pump type:
hydraulic
Color:
Customer's Requirement
Concrete pump:
Pumping Concrete Machine
Keyword:
Concrete Pump Mini
Model:
HWS-CP8
Brand:
Hengwang
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden case or as per your requirements.
Port
Shanghai, Qingdao, Dalian, Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

hydraulic system concrete pump; lightweight concrete pump for sale


Concrete trailer pump is a set of mechanical, electrical and hydraulic technology as one, with reliable performance of smooth operation and strong pumping capability. Reliability and stability is guaranteed by automatic engine regulation.


1) Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
2) Convey all kinds of engineering construction in the plain concrete, fiber concrete.
3) Conveying or injection of refractory and thermal insulation material;
4).Conveying or jet of greening soil on the construction of ecological environment;
5). Conveying or injection of plain concrete and fiber concrete for all kinds of engineering construction.

Name
Cement Concrete Mixer Pump Trailer Hydraulic portable concrete mixer and pump
Model
HBT10
Power
15kw
Voltage
380V
Max.Aggregate Size
15mm
Max Vertical Delivery Distance
20-30m
Max Horizontal Delivery Distance
40-50m
Delivery Capacity
5-6m3/h
Cylinder Stroke
350mm
Outlet diameter
80mm
Diameter of Delivery Pipe
80mm
Steel pipes
10m
Hoses
10m
Total Weight
600kg
Overall Dimension (L*W*H)
1750*700*1200mm

Main Features


1.Outlet pressure is high, which satisfy the high building construction and long distance transmission requirements.


2.Reverse pumping function can facilitate cleaning the conveying pipe.


3.Most electrical appliance components of electrical system are imported, and PLC for control system,with reliable working,strong adaptability,and wired remote control;


4.Automatic lubricant filling device can eliminate the trouble of manual filling and extend the service life of the parts with less abrasion in the lubricants.


5.Cooling menthod adopts air cooling,with super strong chilling performance,keeping the oil temperature less than 600 under the air temperature of the whole year.


6.Hydraulic system adopts U return circuit, reversing is fast and efficient.

Related Products
Details Images
Product packaging
We can ship construction machinery by various transportation tools:

--- For 90% of our shipment will go by sea.
--- For neighbor countries of China, we ship trucks by road or railway.
--- For light spare parts in urgent demand, we choose International courier service, such as DHL, TNT, UPS.
Company Profile
Shanghai Hengwang Machinery Equipment co., LTD is affiliated to Shandong Hengwang Group.
We are the professional manufacturer of Pile driver, Drilling rig, Road construction machine, and other machine with more than 300 workers and 25 senior engineers.
Main clients are around Southeast Asia, Mid East, South America ......
We always offer high quality products and best service. Welcome to visit our factory and sent inquiry to us.
Customer Photos
Certifications
FAQ
Q1: Do you have after-sale service?
A: Sure
1.Our Sales team will response for your question with 24 hours (Holiday Encluded).
2.Technical Support will be available at any time. Free replacement will provide once the failure confirmed caused by our product
quality.

Q2: Where is our factory located? How can I visit there?
A: Our factory is located in Jining, ShanDong Province, China. We are warmly welcomed you visit us.

Q3: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q4: What is your trade terms?
A: FOB,EXW,CFR and CIF all acceptable

Q5:How do you make our business long-term and good relationship?
A:
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them. no matter where they come
from.

Q6:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the products and packages before you pay
the balance.

Q7:How about your delivery time?
A: The specific delivery time depends on the items and the quantity of your order.

Q8:What is the warranty of our machine?
A: Our main machine enjoys a 1 year warranty,during this time all accessories broken can be changed for a new one.And we provide
videos for machine install and operation.

Q9:What is your terms of packing?
A: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q10:Do you Preferred provide wear parts for transacted clients?
A: Yes, we have records for your clients, and will prefer providing accessories to clients.

Q11:Do you have any certificates for your machine?
A: All of our produ cts coming with the certificates of CE, ISO9001.
