Hand Push Thermoplastic Road line Marking Machine Road Marking Paint Machine for sale

FOB Reference Price:Get Latest Price
$1,099.00 - $2,999.00 / Set | 1 Set/Sets Hand Push Thermoplastic Road line Marking Machine (Min. Order)
Model Number:
HW-HM08
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Power(W):
Engines
Dimension(L*W*H):
1200*900*900mm
Weight:
105kg
Condition:
New
Place of Origin:
China
Brand Name:
Hengwang
Certification:
ISO
Features:
Hand-Push
Line Types:
Thermoplastic Paint Road Marking Machine
Product Name:
Hand Push Thermoplastic Road line Marking Machine
Application:
City Road Edge Line
Usage:
Zebra Crossing Line
Name:
Hand Push Thermoplastic Road line Marking Machine
Marking mode:
Traffic Safety Paint
Type:
Themoplastic
Mark width:
100-450 ( Adjustable)
Road marking machine:
Hand Push Cold Spray Marking Machine
Paint Tank Capacity:
95KG
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Months
Supply Ability
Supply Ability:
1000 Set/Sets per Year Hand Push Thermoplastic Road line Marking Machine
Packaging & Delivery
Packaging Details
wooden cae
Port
shanghai/qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

Hand Push Thermoplastic Road line Marking Machine/Road Marking Paint Machine

SPECIFICATIONS FOR TW-HM08  HAND-PUSH ROAD MARKING MACHINE
Outer dimensions
1200 mm*900 mm*900mm
Total weight of machine
125kg
Capacity of glass bead box
25kg
Capacity of stirring tank
105kg
Coat thickness
1.2-4mm
Bead dispensing method
Gear Driven, Automatically Clutch
Temperature maintenance of coating material
170~250°C
Markingwidth
50,80,100,120,150,200,230,250,300mm

Hand Push Thermoplastic Road line Marking Machine/Road Marking Paint Machine

Product Application

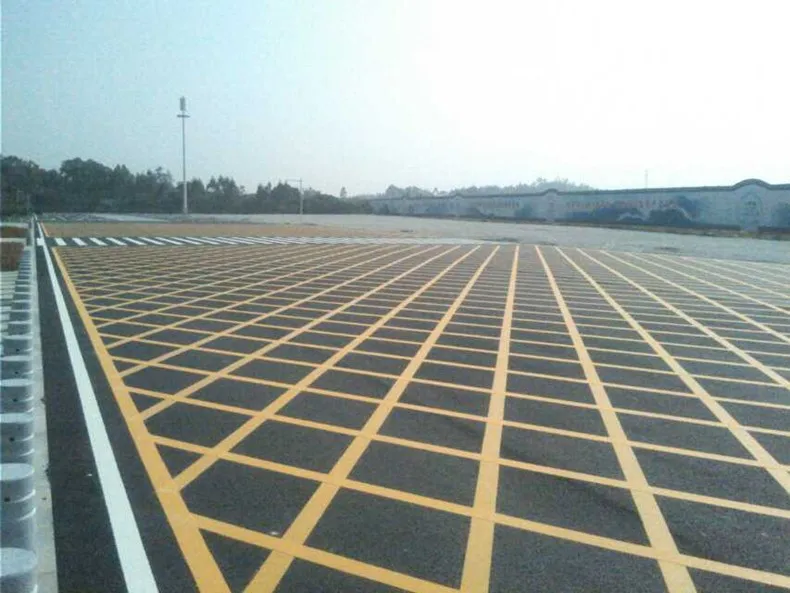

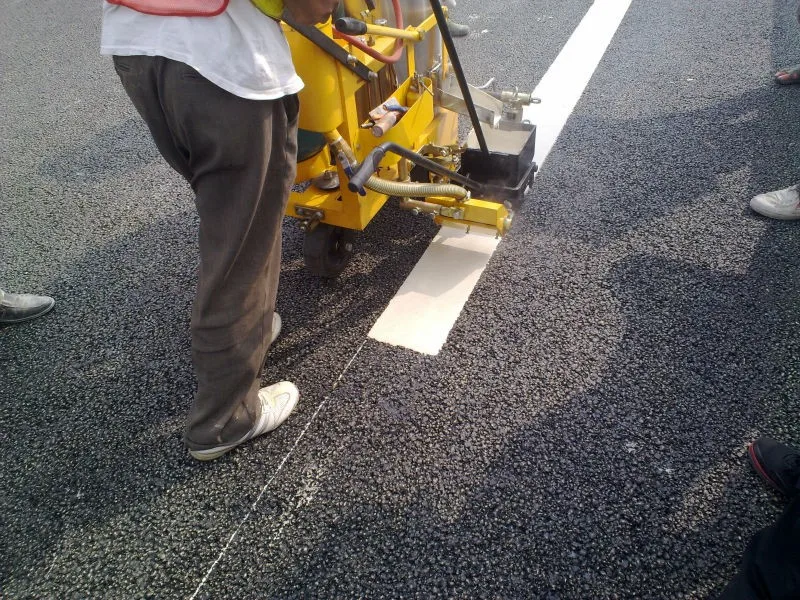

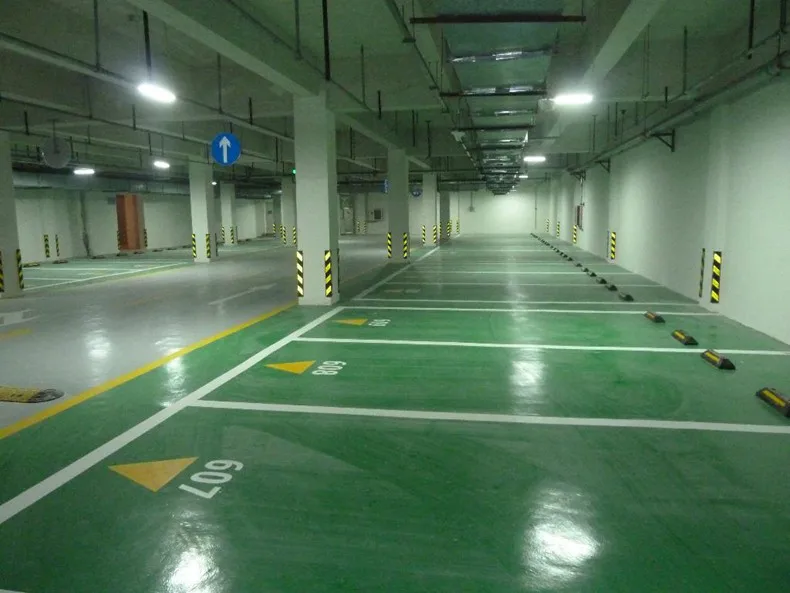

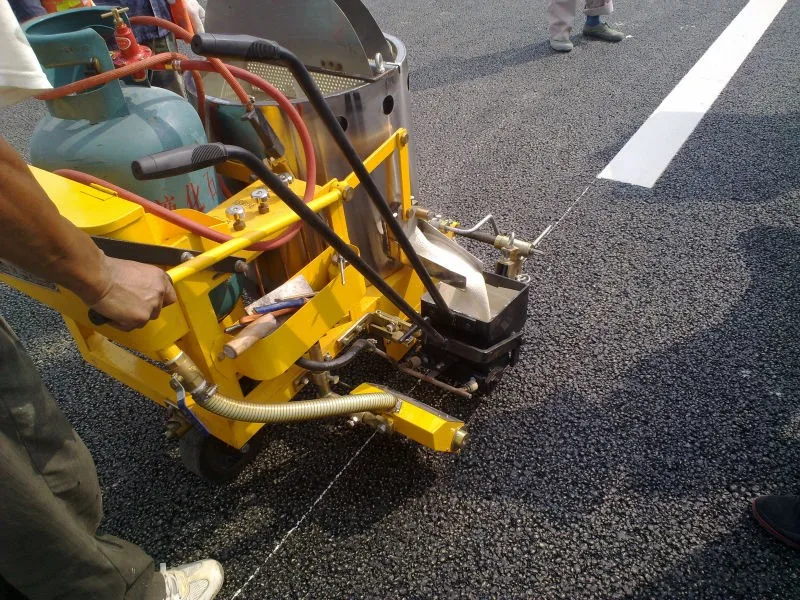

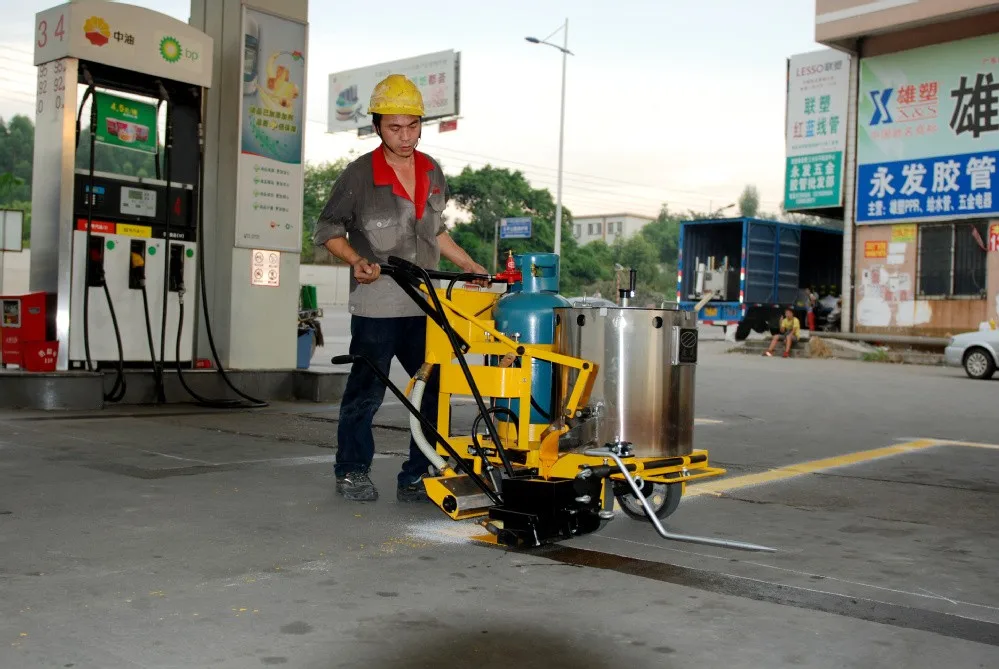

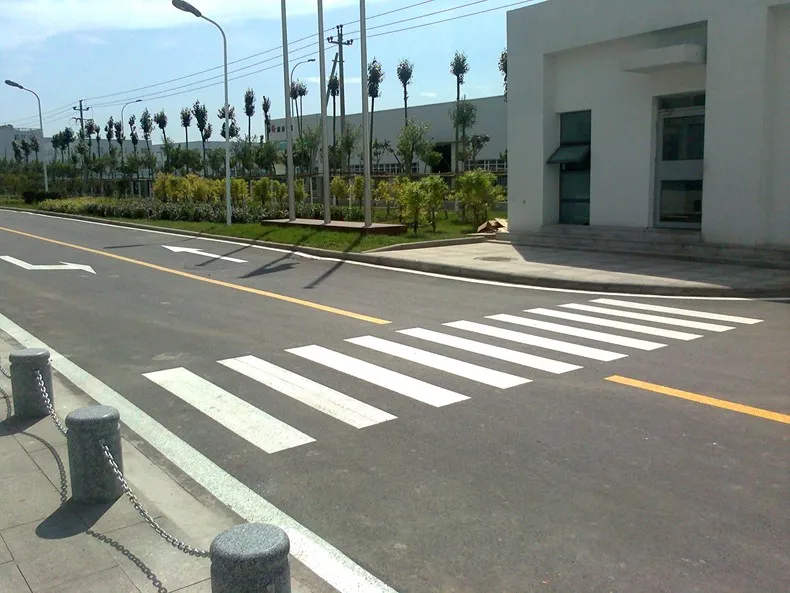

The machine is used for marking reflective lines (straight lines, dotted lines, direction arrows, letters and symbols) on high way, city street, parking lot, factory and warehouse. It have hand push or automatically walk (engine driven).

Hand Push Thermoplastic Road line Marking Machine/Road Marking Paint Machine

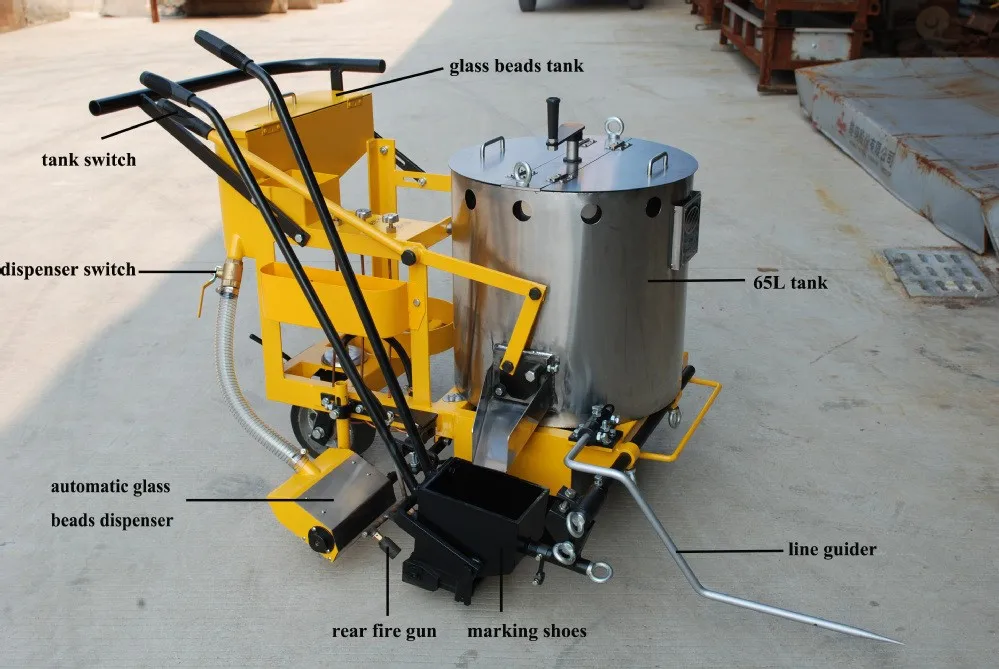

Main Features

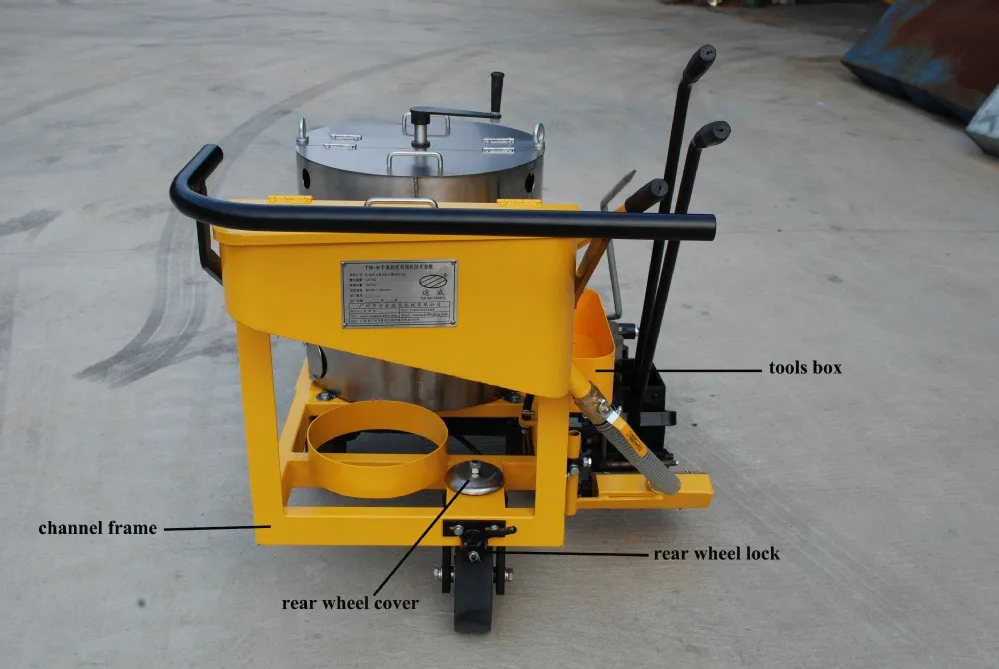

1). Marking hopper: a complete range of marking hopper, the size from 50mm to 450mm, have single handle or double handle.

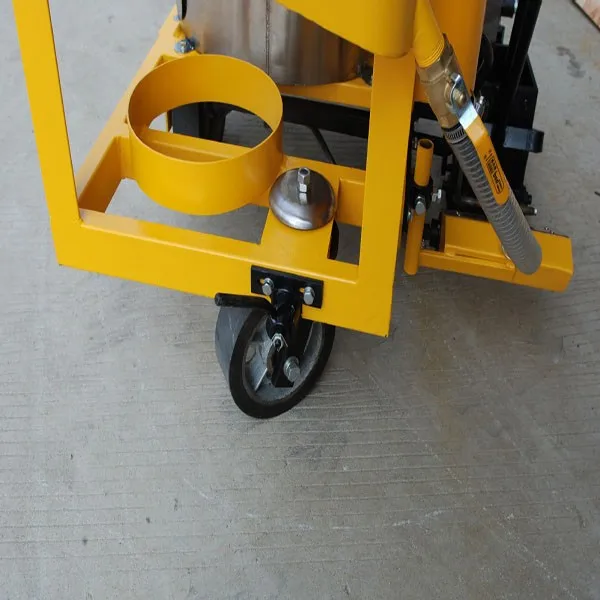

2). Heavy-duty chassis: the weight light with good mechanical design(widen the space between the front wheels, choose light and heavy-duty material for frame.)

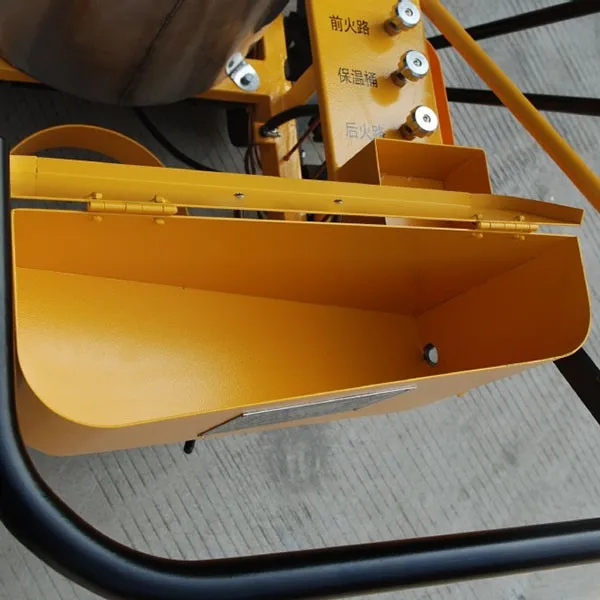

3). Glass bead dispenser: gear driven mechanism with soft shaft. Special attachment for glass bead flow adjustment.
4). The rear burner nozzles: high efficient nozzles attaches in marking hopper to maintain temperature.

5). Directional lock system: able to rotate 360 degree smoothly and accurately.

Hand Push Thermoplastic Road line Marking Machine/Road Marking Paint Machine

company
Team & Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

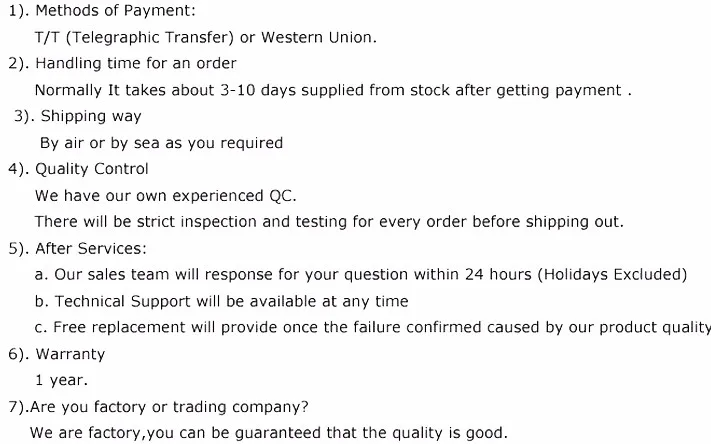

FAQ
