High efficiency Backpack portable diamond core drill rig /rock drill for exporting
- Shipping:
- Support Sea freight
- Condition:
-
New
- Type:
-
Core Drilling Rig
- Power Type:
-
Gasoline
- Place of Origin:
-
Shandong, China
- Brand Name:
-
HW
- Model Number:
-
HW
- Usage:
-
backpack core drilling rig
- Voltage:
-
220V/380V
- Power:
-
7.75HP
- Dimension(L*W*H):
-
2.75*0.95*1.6m
- Weight:
-
25kg
- Certification:
-
ISO9001
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Engineers available to service machinery overseas
- Drilling diameter:
-
32-108mm
- Drilling depth:
-
30m
- Adapt to geology:
-
Soil layer, loose cover, all kinds of rock
- Water Consumption:
-
0.3L/min
- Drill pipe diameter:
-
32mm
- Drill pipe length:
-
750mm (with connector)
- Drill pipe material:
-
Titanium alloy
- Drill weight:
-
1.1kg
- Rated speed:
-
2800rpm
- Model:
-
HW-B30
- Supply Ability:
- 10000 Set/Sets per Month backpack drilling rig
- Packaging Details
- wooden or as your requirement
- Port
- shanghai dalian qingdao ningbo
- Lead Time :
- 3~5 days after receive payment
Online Customization
Product Application

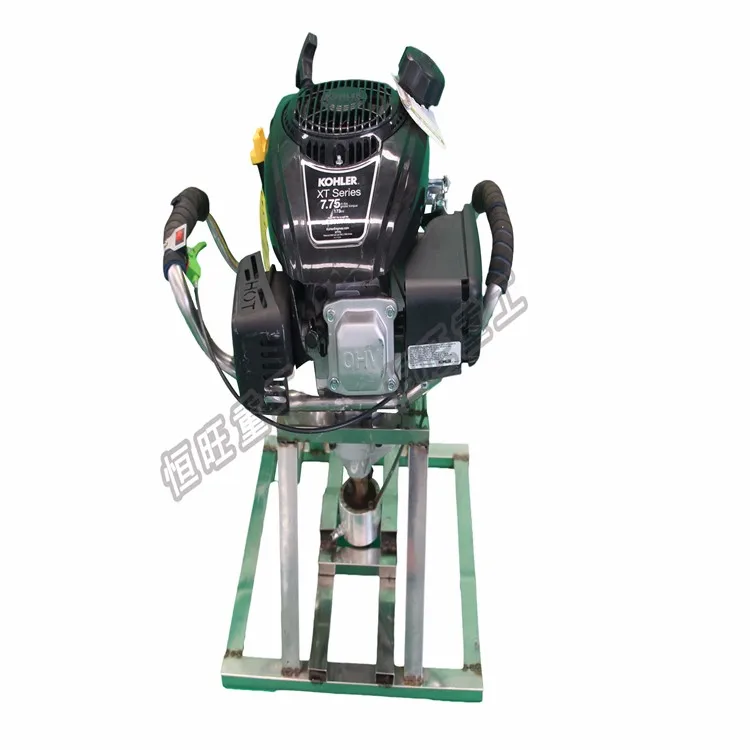

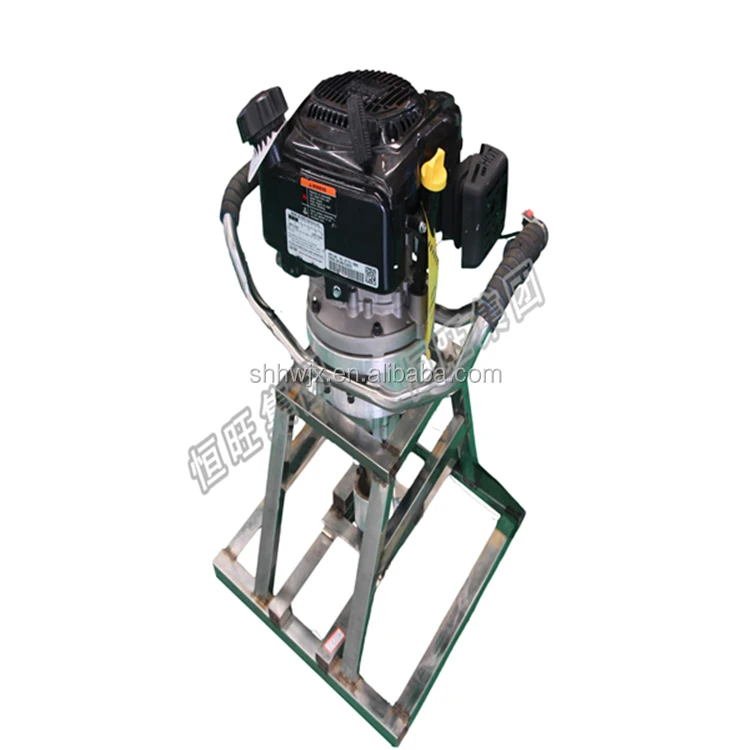

Backpack Portable Core Drilling Machine is designed for mineral, oil and gas exploration,It is tailored for geological research and prospectors, it has experienced decades of experience and accumulation in dozens of countries and regions in the world of the field validation, We constantly improve and upgrade the quality of our products and believe that the equipment will be helpful for your work.
Model | HW-B30 | Consumption | about 0.3L / min |
Drilling diameter | φ32-108mm | Drill diameter | φ32mm |
Drilling depth | 30m | Drill length | 750mm (with joints) |
Adaptation Geological | soil, loose cover, all kinds of rock | Drill pipe material | titanium |

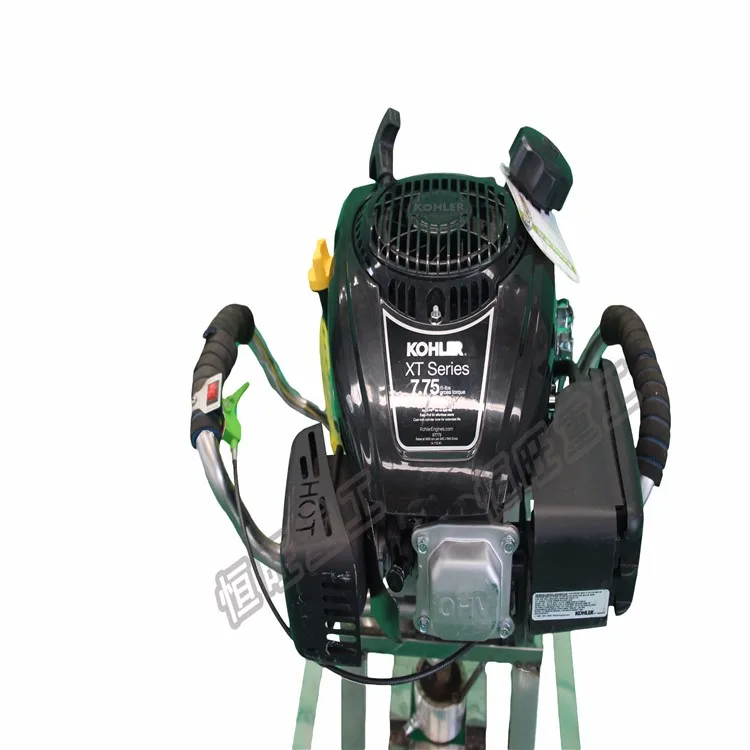

Drill pipe weight | about 1.1kg | Gasoline brand | KOHLER |
Gasoline models | XT Series 775 | Rated speed | 2800rpm |
Gasoline engine power | 7.75HP | Machine weight | about 25kg |



Main Features
1). All the drilling equipment can be bearing by a single person;
2). The most light drilling equipment!!!!! The weight of all equipment is only 27 kg ;
3). For mountains, the traffic inconvenience, lack water areas ,it's easy to use.
4). Easy to carry a whole set of drilling rig and spare parts into the backpack, a standard set of portable drilling machine and its accessories is not more than 27 kg weight.
5). All equipment used in drilling and collect all kinds of rock samples of tools are available in a backpack, a normal adult men and women all can easily afford.In addition, the bags have enough space to spare fuel, potable water, and personal items.
6). The operation is flexible as long as simply rotate and push and pull, no additional tools, can be linked or extend the whole device, easy disassembly drag. Coupled with the core draw, can quickly and thoroughly remove core and core fragments.
7). Quick drilling, our drilling rig is a patented product in China, drill through a variety of rock surface efficiency is unique, special formula of diamond bit has a sharp notch, save time and effort, and ensure the service life of enough.

Machine Parts

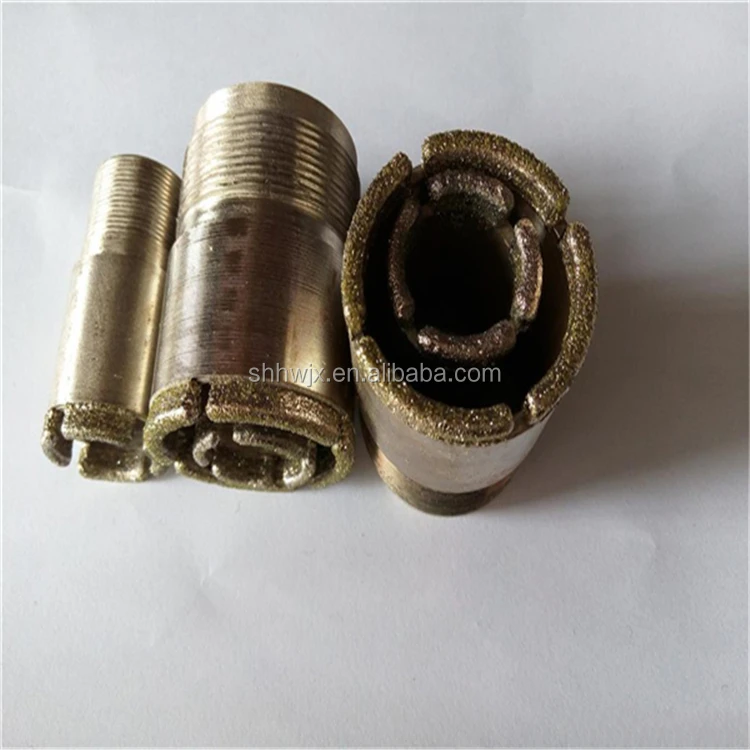

Diamond thin-walled core drill with long-walled thin-walled core tube and diamond cutting head combination, with drilling efficiency, core sample integrity and other characteristics, as HW-B30 portable core drilling rig for core drill
Main Features
It is characterized by the quick speed of the core, the rapid disassembly of the drill pipe greatly improves the working efficiency. The finer rod can effectively reduce the friction with the hole wall, and it has excellent performance in the small hole shallow core operation


Machine Parts
The manual high-pressure water pump used by the rig, through the extrusion of the way the pressure of water for the rig drilling process into the indispensable water, to speed up the drilling efficiency
Main Features
In the core work, in case of broken core, core, etc., can first put the drill bit, remove the drill core after the complete core, replace the smaller drill bit hole using the drill bit to cut the hole in the hole And made.








Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

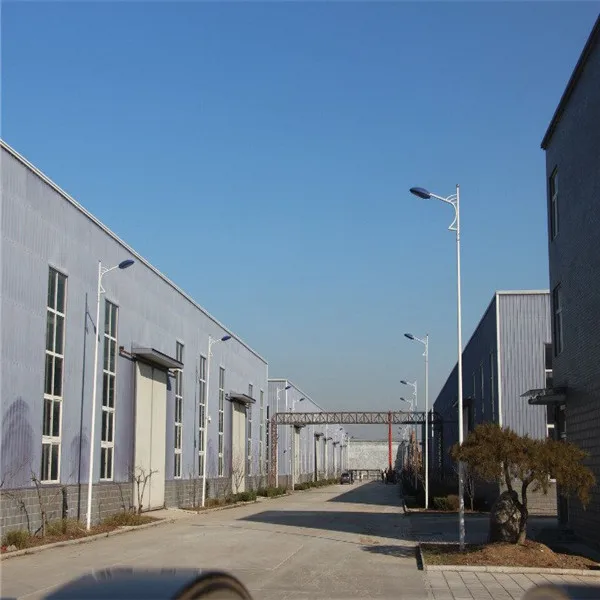

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packaging | |
Size | 2.75*0.95*1.6m |
Weight | 25kg |

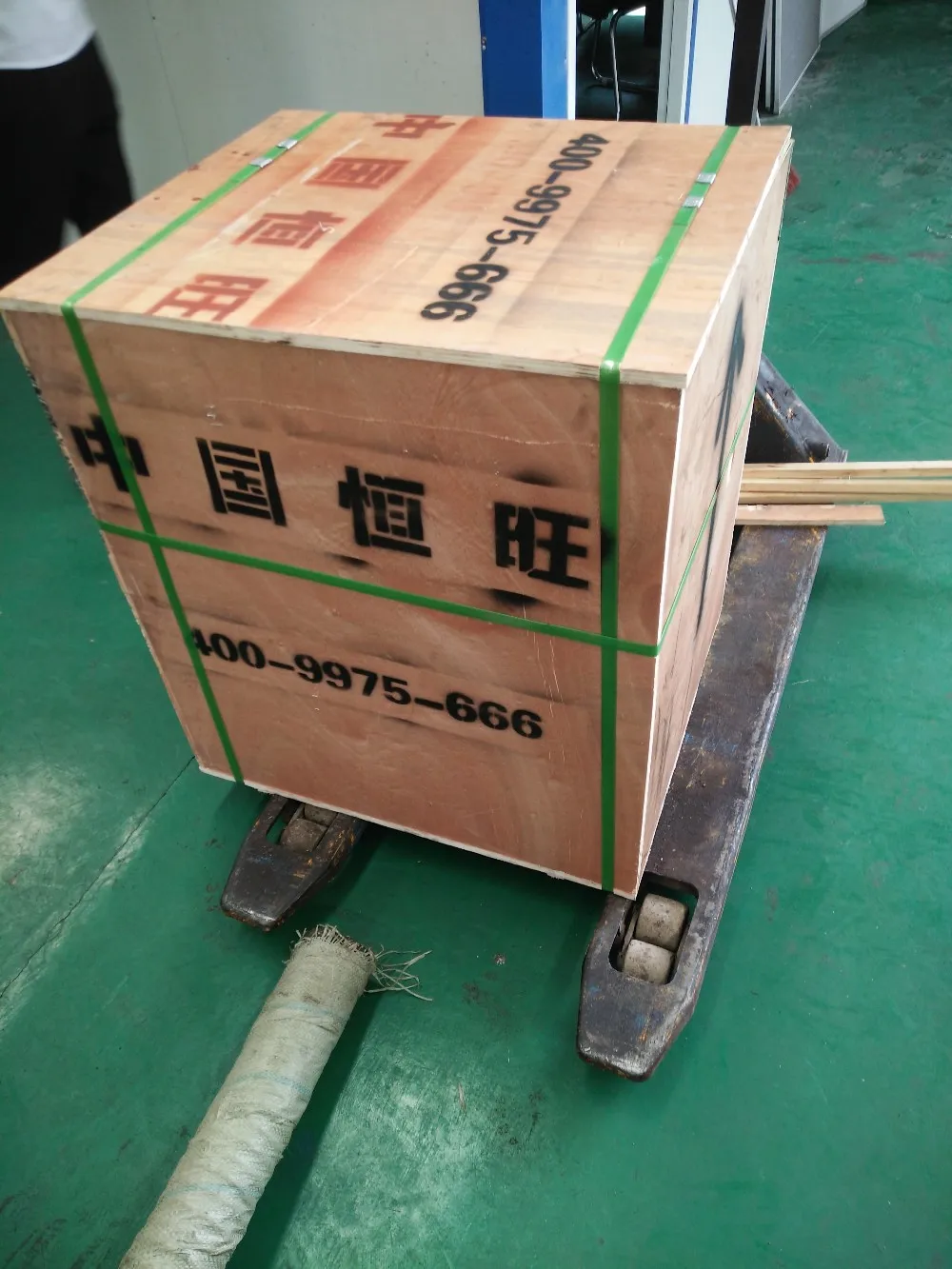

Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
