Interlock concrete brick making machine for sale in USA

FOB Reference Price:Get Latest Price
$3,400.00 - $3,600.00 / Set | 1 Set/Sets Interlock concrete brick making machine for sale in USA (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Brick Raw Material:
concrete, cement
Capacity:
Hour
Type:
curbstone block/hollow block/interlock block making machine
Power:
10kw
Certification:
ISO
Place of Origin:
Shanghai, China
Brand Name:
Hengwang
Model Number:
SY4-40
Voltage:
220V/380V/440V
Automatic:
Yes
Processing:
Brick Production Line
Method:
Hydraulic Pressure
Condition:
New
Dimension(L*W*H):
1350*1460*1800mm
Raw material:
Fly Ash, cement, concrete
Name:
Interlock concrete brick making machine for sale in USA
Color:
red, yellow
Block Type:
Hollow solid paving brick
Product Name:
Interlock concrete brick making machine for sale in USA
Weight:
4T
Products:
Interlock concrete brick making machine for sale in USA
Model:
SY4-40
Pallet size:
850*450*30mm
Molding cycle:
25s
Warranty:
2 Years
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Year Interlock concrete brick making machine for sale in USA
Packaging & Delivery
Packaging Details
Wooden case or as per your requirements.
Port
Shanghai, Qingdao, Dalian, Ningbo
Lead Time :
within 3-4 days after receiving the payment
Product Description
 Interlock concrete brick making machine for sale in USA

Product Application

Batching Machine
1.Weighting accuracy is guaranteed by the high-precision weighing sensor, and the warp ratio is within ±1%.
2.The electronic weighing, microcomputer control, digital display, wired remote control operation

Mixer
1.Automatic feeding material /Automatic self-clocking/Automatic adding water
2.Double mixture axes, the speed of mix ,will be approved to a large degree, and the Large particles can easily be stirred

Block Machine

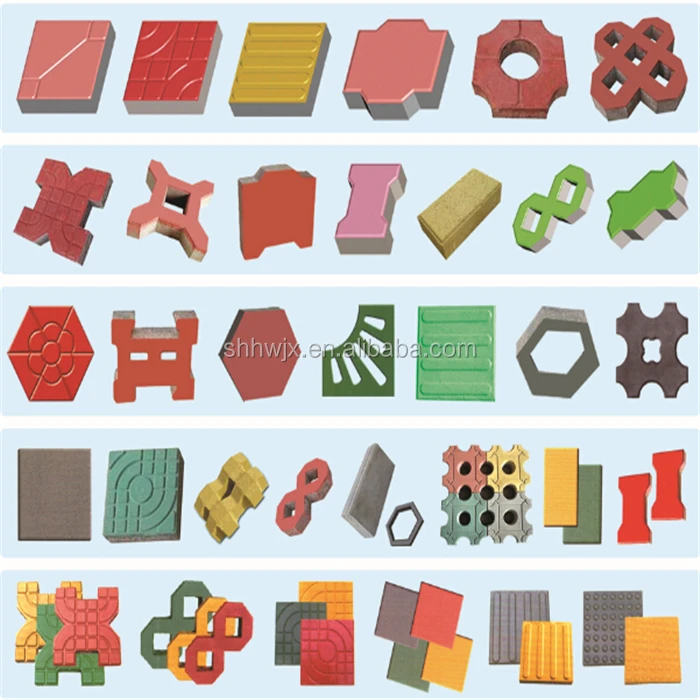

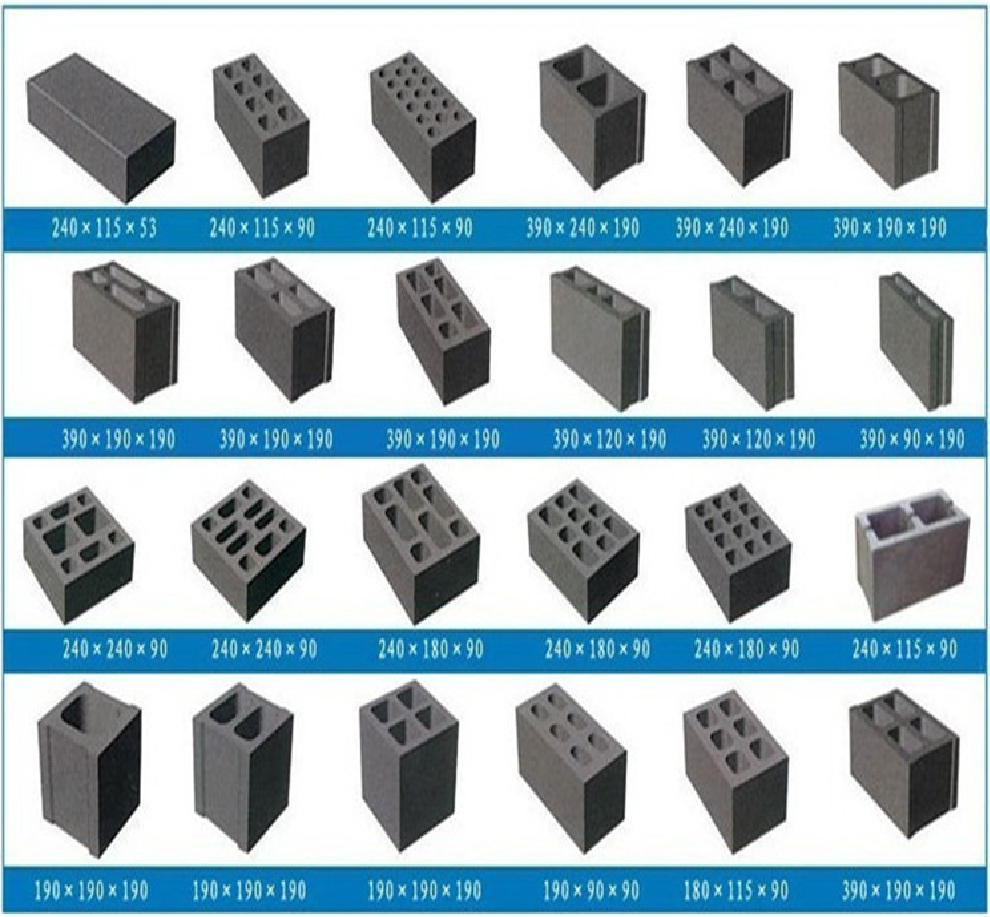

block making machine can produce hollow, solid, interlock/paver and curbstone and Habiterra , the size as your requirement

Stacker Machine
1.Use frequency conversion technology enables the stacker to move up and down very smoothly , greatly protect the wet blocks.
2.Motor connected with speed reducer,to make power,and drive the gear moving, thereby lead the system to move.
Model
SY4-40
Cycle time
40s
Pallet size
850*450mm
Power
10KW
Dimension
1350*1460*1800mm
Exciting force
35KN
Working efficiency
2000-2500pcs/day

Main Features

1.Use Siemens motors, PLC control system and touch screen, use Schneider or Omron relays and contactors
2.Use German frequency conversional control technology in the block making machine
3.Use double high-dynamic proportional valves to adjust the oil flow and pressure automatically.
4.360° Multi-shaft rotating and compulsory feeding system.
5.Use heat treatment on molds and main parts of the machines
6.Use International standard steel material for the machine structure and manganese steel for the mold and other special parts.
Packing & Delivery

Packaging: wooden case or as per your requirements.

Shipping: 1. professional goods shipping forwader;
                2. port: Shanghai, Qingdao, Dalian, Ningbo.

Delivery: within 3-4 days after receiving the payment
