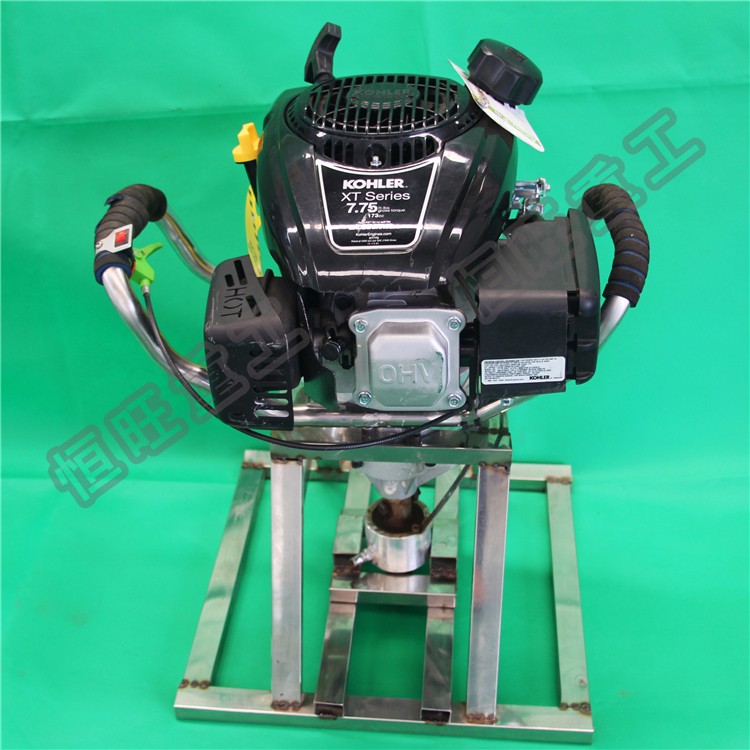

Backpack drilling machine/Portable used core sample drilling rigs for sale

FOB Reference Price:Get Latest Price
$2,000.00 - $5,880.00 / Set | 1 Set/Sets Backpack drilling machine/Portable used core sample drilling rig (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Hengwang
Model Number:
HW-B30H
Usage:
Coal
Voltage:
220V/380V
Weight:
26.5kg
Certification:
ISO, ISO
Type:
Core Drilling Rig
Power Type:
Gasoline
Dimension(L*W*H):
600*640*2200mm
Power(W):
7.72hp
Name:
Backpack drilling machine/Portable used core sample drilling rigs
Color:
Customized
Port:
Shanghai/ Ningbo/ Dalian/ Qingdao
MOQ:
1 set
Application:
mineral exploration, coal, geological prospecting, construction, well
Drilling depth:
30m
Engine:
KOHLER
Spindle Speed:
2800 R/min
Drilling diameter:
32-108mm
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Month Backpack drilling machine/Portable used core sample drilling rig
Packaging & Delivery
Packaging Details
1. Wooden case and iron construction packing;
2. As per your requirements
Port
Shanghai/ Ningbo/ Dalian/ Qingdao
Lead Time :
within 3-5 days after receiving the payment
Product Description

Product Application

The backpack core drill is a ideal tool for environmental mineral, oil, gas exploration and geotechnical field investigation because it can be used in otherwise difficult of access locations behind buildings, fences and walls, trees, escarpments and much else. The diamond core bits of the system are easily capable of advancing borings through a large array of subsurface materials including steel reinforced concrete, hard rock and some kinds of cemented gravels.
The drill has many field applications including precious and basic metals, academic, environmental, geotechnical investigation, construction, treasure hunting, fossil fuels, quarry stone, and well.

Name
Backpack drilling machine/Portable used core sample drilling rigs for sale
Model
HW-B30H
Drilling depth
30m
Drilling diameter
32-108mm
Adaptation geological
soil, loose cover, all kinds of rock
Engine type
KOHLER XT775, gasoline engine
Oil consumption
0.4L/min
Rated speed
2600r/min
Power
7.72hp
Drill pipe material
titanium alloy
Standard configuration
30m
Drill bit material
diamond
Drill bit diameter
φ27, φ32, φ42, φ56, φ63, φ76, φ89, φ96, φ102, φ108mm
Weight
26.5kg
Drilling Speed for Different Geology:
killas: 119mm/min
Basalt: 127mm/min
Sandstone: 130mm/min
Dolomite: 226mm/min
Limestone: 241mm/min

Main Features.

1). For mountains, the traffic inconvenience, lack water areas ,it's easy to use.
2). Easy to carry a whole set of drilling rig and spare parts into the backpack, a standard set of portable drilling machine and its accessories is not more than 25 kg weight.
3). All equipment used in drilling and collect all kinds of rock samples of tools are available in a backpack, a normal adult men and women all can easily afford.In addition, the bags have enough space to spare fuel, potable water, and personal items.
4). The operation is flexible as long as simply rotate and push and pull, no additional tools, can be linked or extend the whole device, easy disassembly drag. Coupled with the core draw, can quickly and thoroughly remove core and core fragments.
5). Quick drilling, our drilling rig is a patented product in China, drill through a variety of rock surface efficiency is unique, special formula of diamond bit has a sharp notch, save time and effort, and ensure the service life of enough.

Certifications
Company Information
FAQ

1, Methods of Payment:
T/T or Western Union
2, Handling time for an order
Normally it takes about 3-10 days supplied from stock after getting payment.
3, Shipping way
By air or by sea as your required,
4, Quality Control
We have our own experienced QC.
5, After Service:
a,Our Sales team will response for your question with 24 hours(Holiday Encluded)
b,Technical Support will be available at any time.
c, Free replacement will provide once the failure confirmed caused by our product quality
6, Warranty,
1, year.
7, Are you factory or trading company?
We are factory, you can guaranteed that the quality is good.

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery

Packaging: 1. Wooden case and iron construction packing;
2. As per your requirements.

Shipping: 1. professional goods shipping forwader;
2. port: Shanghai, Qingdao, Dalian, Ningbo.

Delivery: within 3-5 days after receiving the payment.
