hydraulic busbar bending machine copper bus bar processing machine multi-function hydraulic machine
- Shipping:
- Support Sea freight
- Place of Origin:
-
China
- Brand Name:
-
Hengwang
- Model Number:
-
HWS-B150
- After-sales Service Provided:
-
No overseas service provided
- Name:
-
hydraulic busbar bending machine copper bus bar processing machine
- Product name:
-
hydraulic busbar bending machine copper bus bar processing machine
- Application:
-
IRON, COPPER, ALUMINUM
- Type:
-
Hydraulic
- Usage:
-
cutting punching bending
- Color:
-
Request
- Function:
-
cutting punching bending
- Certification:
-
ISO
- Weight:
-
190KG
- Power:
-
750W,220V,50HZ
- Supply Ability:
- 1000 Set/Sets per Month hydraulic busbar bending machine copper bus bar processing
- Packaging Details
- 1. Wooden case and iron construction packing;
2. As per your requirements
- Port
- Shanghai/ Ningbo/ Dalian/ Qingdao/ Shenzhen
- Lead Time :
- within 3-5 days after received the payment
Online Customization
hydraulic busbar bending machine copper bus bar processing machine multi-function hydraulic machine
Application
This is a combination of a number of functions the body of professional design, perfect to avoid consideration of human waste, that is, provincial working hours, consistent with established operating procedures for personnel engaged in handy, resulting in high efficiency, high quality perfect work; the form, appearance, easy to move the surface paint and rust treatment by phosphoric acid skin mold, wear-resistant impact;

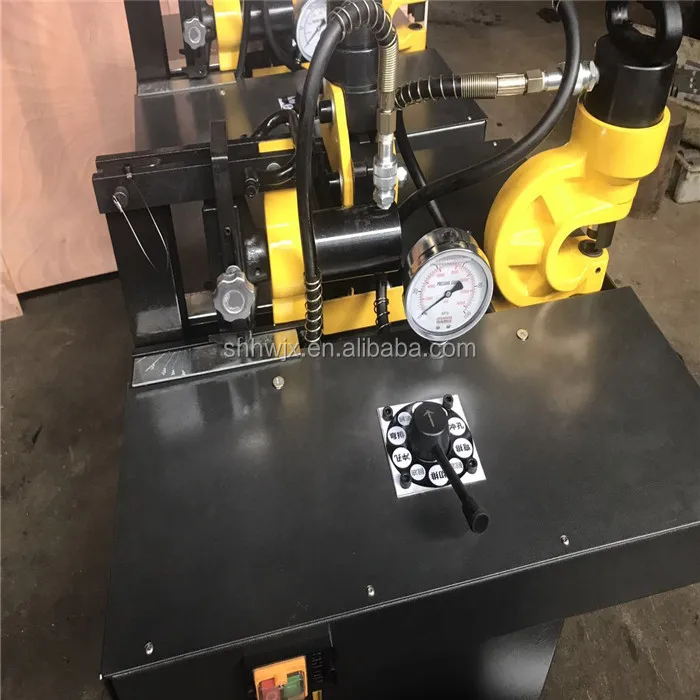

Three position valve guide precision and convenient operation hydraulic pump with hydraulic table shows the working pressure to avoid overloading.
Foot switch operation device, easy to use environmental surface treatment table, after grinding and chrome desk, showing accurate and stable table; affixed with 15cm of steel rule, can work up to standard size parameters; hand adjustable board seat, for long and short size standard, unified control practices; security firm foot switch to control the import and return to oil; focus on the design of copper scrap scrap bags and opened his mouth and out the mouth of slide type can be cut, wearing copper scrap sinks article, but not filled with clutter everywhere
hydraulic busbar bending machine copper bus bar processing machine multi-function hydraulic machine
SPECIFICATION FOR HWS-B150 HYDRAULIC BUSBAR CUTTING PUNCHING BENDING MACHINE | |
Name | Trinity multifunction busbar prcessor |
Model | HWS-B150 |
Three function | Drilling machine |
Cutting machine | |
Bending machine | |

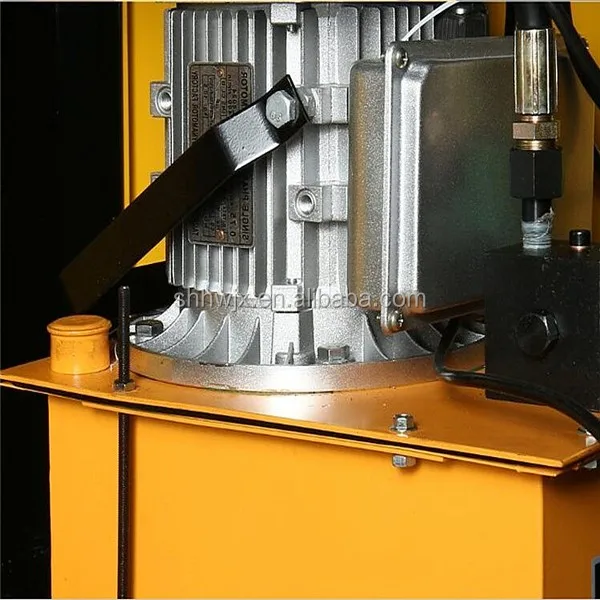

Configuration pump | ZCB-700B electromagnetic valve electric pump |
Processing objects | Copper busbar, Aluminum busbar |
Processing range | width 150x Thickness 10mm |
Work table size | 700*700*735mm |
Wolk voltage | Single phase ,50Hz 220V |
Rated work oil pressure | 700KG/cm2 |
Standard punching mold | Dia.7,9,10,17.5,20.5 |
Package | Wooden case |
Gross weight | 170kgs |






hydraulic busbar bending machine copper bus bar processing machine multi-function hydraulic machine
Main Features
cutting, punching, bending flat stand, the machine and high flexibility, small size and strong function, high productivity and efficiency. Is to produce a large electric control box and transmission and distribution construction works on site an essential tool
Standard equipment:
Electric hydraulic pump, cutting, punching, bending flat, vertical bending tools;
Hydraulic tool specifications:
Cutting Tools CWC-150 copper width 150mm / Thickness 12mm (without side flat copper flat) cut row machine output: 20ton;
CH-70 hole punching machine tool output: 35 tons; iron copper 12mm thick 10mm thick 110mm deep throat
Die four groups: aperture 3 / 8 "(10.5mm), 1 / 2" (13.8mm), 5 / 8 "(17mm), 3 / 4" (20.5mm); reprovision ¢ 7mm, ¢ 9mm
Li, Ping Tool CB-125D flat curved bend, two features stand bent, aluminum, copper width 40,50,60,80,100,125 mm thickness 4,5,6,8,10,12.5 mm.
hydraulic busbar bending machine copper bus bar processing machine multi-function hydraulic machine









Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
