Hengwang Geological exploration backpack diamond core sample drilling rig for sale

FOB Reference Price:Get Latest Price
$7,000.00 - $9,000.00 / Set | 1 Set/Sets backpack drilling rig (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW
Usage:
backpack drilling rig
Voltage:
220V/380V
Weight:
25kg
Certification:
ISO9001
Type:
Core Drilling Rig
Power Type:
Gasoline
Dimension(L*W*H):
2.75*0.95*1.6m
Power(W):
7.75HP
Drilling diameter:
32-108mm
Drilling depth:
30m
Model:
HW-B30
Drill pipe diameter:
32mm
Drill pipe length:
750mm (with connector)
Drill pipe material:
Titanium alloy
Drill weight:
1.1kg
Rated speed:
2800rpm
Total Weight:
25kg
Name:
backpack drilling rig
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
10000 Set/Sets per Month backpack drilling rig
Packaging & Delivery
Packaging Details
wooden or as your requirement
Port
shanghai dalian qingdao ningbo
Lead Time :
3~5 days after receive payment
Product Description

Product Application

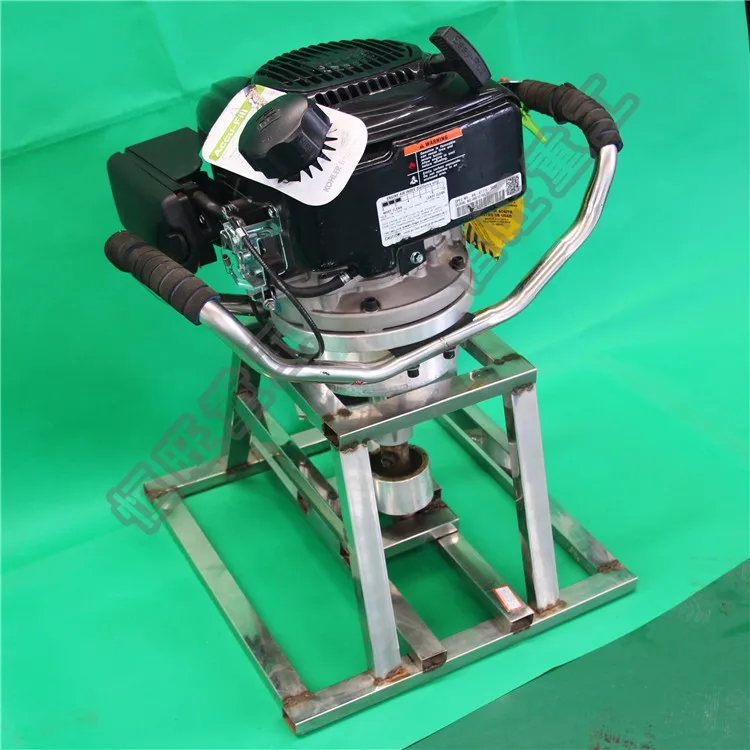

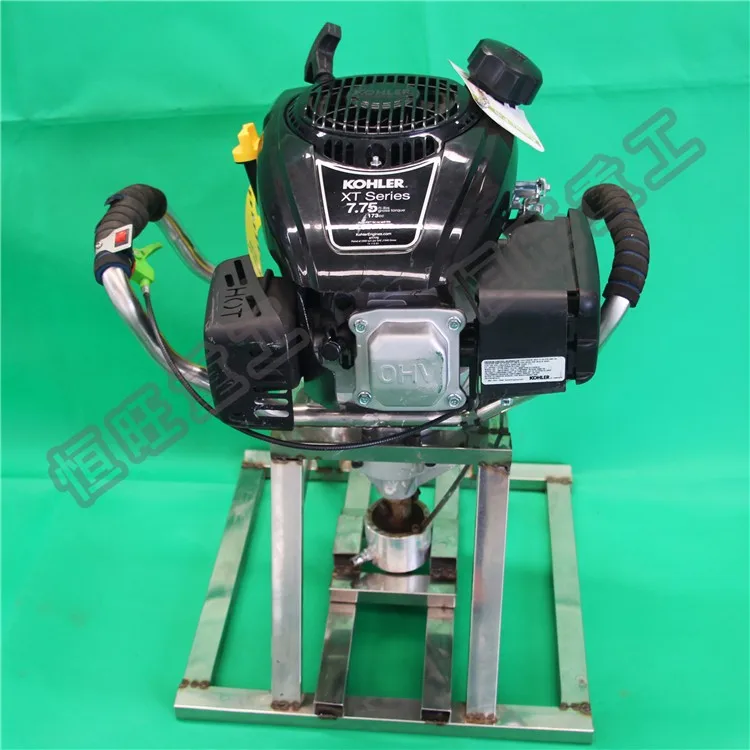

Backpack Portable Core Drilling Machine is designed for mineral, oil and gas exploration,It is tailored for geological research and prospectors, it has experienced decades of experience and accumulation in dozens of countries and regions in the world of the field validation, We constantly improve and upgrade the quality of our products and believe that the equipment will be helpful for your work.

Model
HW-B30
Consumption
about 0.3L / min
Drilling diameter
φ32-108mm
Drill diameter
φ32mm
Drilling depth
30m
Drill length
750mm (with joints)
Adaptation Geological
soil, loose cover, all kinds of rock
Drill pipe material
titanium
Drill pipe weight
about 1.1kg

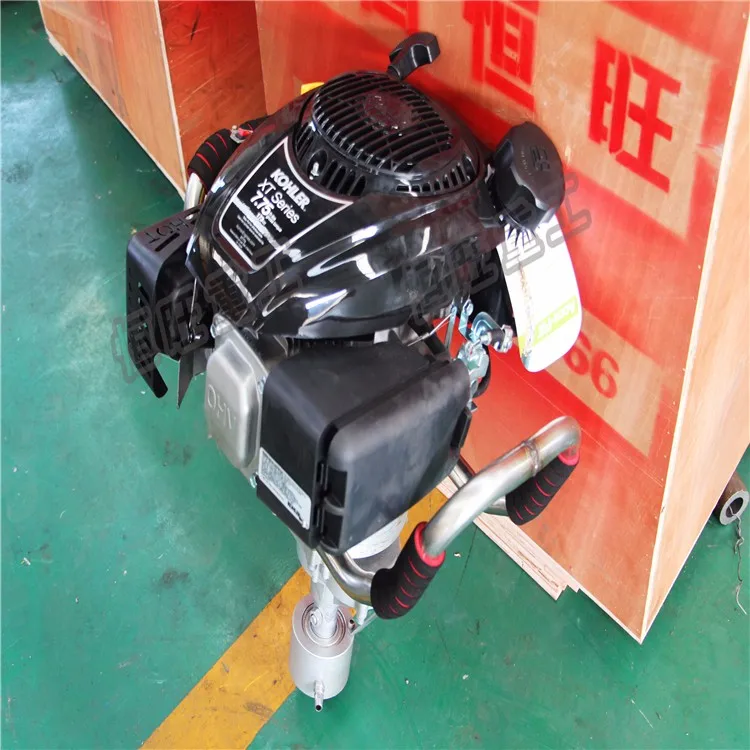

Gasoline brand
KOHLER
Gasoline models
XT Series 775
Rated speed
2800rpm

Gasoline engine power
7.75HP
Machine weight
about 25kg

Main Features

1). All the drilling equipment can be bearing by a single person;

2). The most light drilling equipment!!!!! The weight of all equipment is only 27 kg ;

3). For mountains, the traffic inconvenience, lack water areas ,it's easy to use.

4). Easy to carry a whole set of drilling rig and spare parts into the backpack, a standard set of portable drilling machine and its accessories is not more than 27 kg weight.

5). All equipment used in drilling and collect all kinds of rock samples of tools are available in a backpack, a normal adult men and women all can easily afford.In addition, the bags have enough space to spare fuel, potable water, and personal items.

6). The operation is flexible as long as simply rotate and push and pull, no additional tools, can be linked or extend the whole device, easy disassembly drag. Coupled with the core draw, can quickly and thoroughly remove core and core fragments.

7). Quick drilling, our drilling rig is a patented product in China, drill through a variety of rock surface efficiency is unique, special formula of diamond bit has a sharp notch, save time and effort, and ensure the service life of enough.

Detailed Images

Machine Parts

Diamond thin-walled core drill with long-walled thin-walled core tube and diamond cutting head combination, with drilling efficiency, core sample integrity and other characteristics, as HW-B30 portable core drilling rig for core drill

Main Features

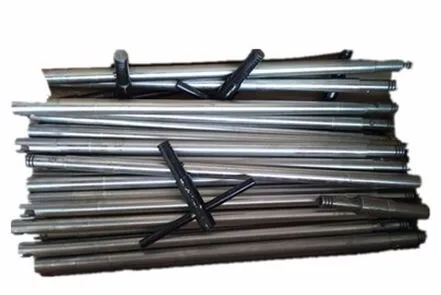

It is characterized by the quick speed of the core, the rapid disassembly of the drill pipe greatly improves the working efficiency. The finer rod can effectively reduce the friction with the hole wall, and it has excellent performance in the small hole shallow core operation

Machine Parts

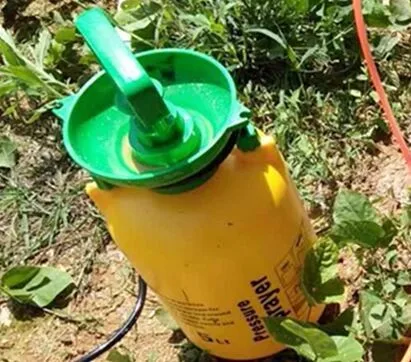

The manual high-pressure water pump used by the rig, through the extrusion of the way the pressure of water for the rig drilling process into the indispensable water, to speed up the drilling efficiency

Main Features

In the core work, in case of broken core, core, etc., can first put the drill bit, remove the drill core after the complete core, replace the smaller drill bit hole using the drill bit to cut the hole in the hole And made.

Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2.75*0.95*1.6m
Weight
25kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
