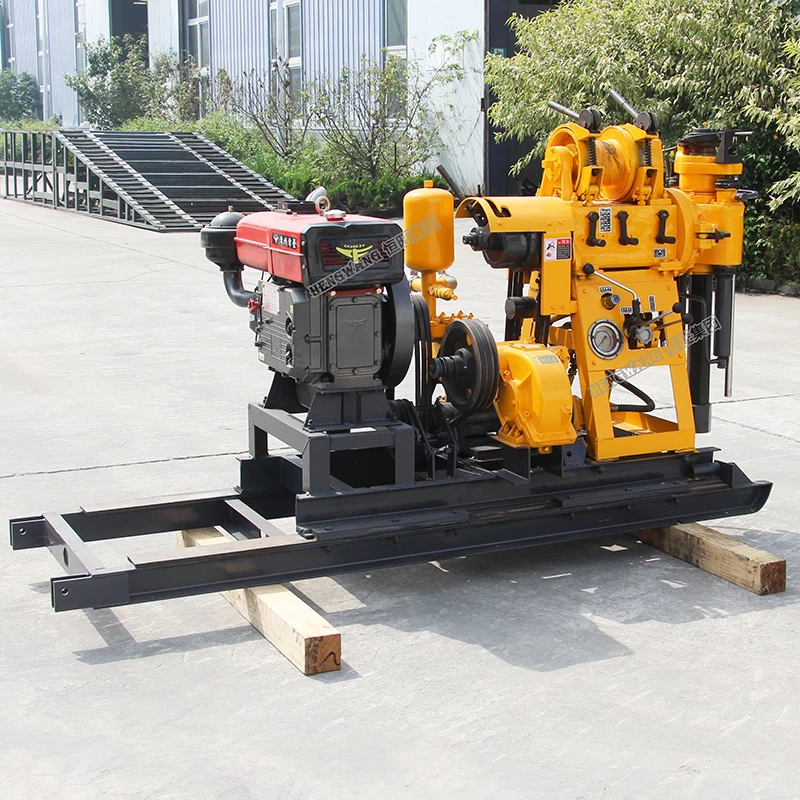

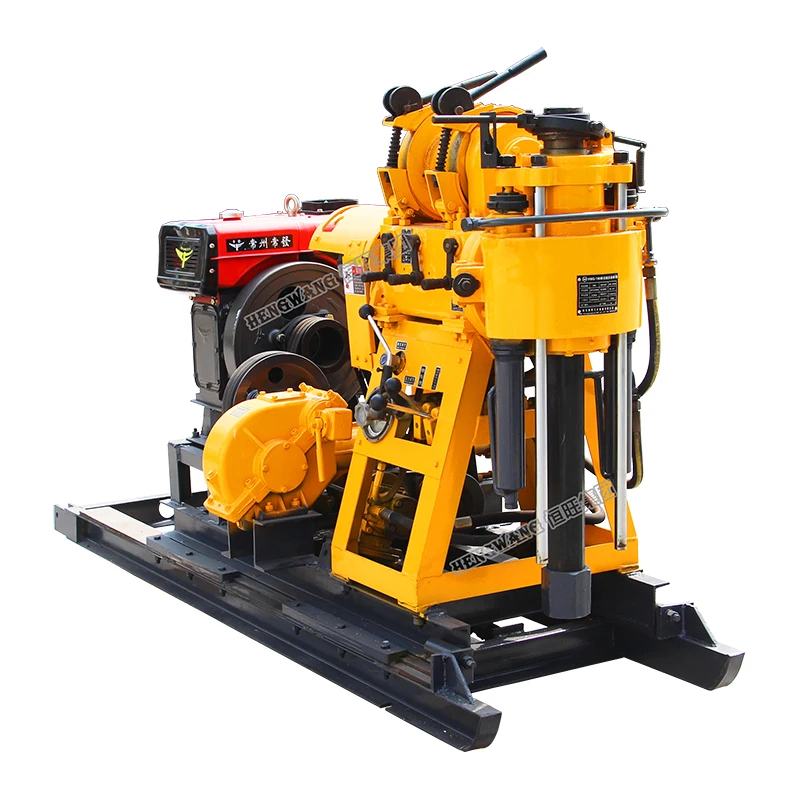

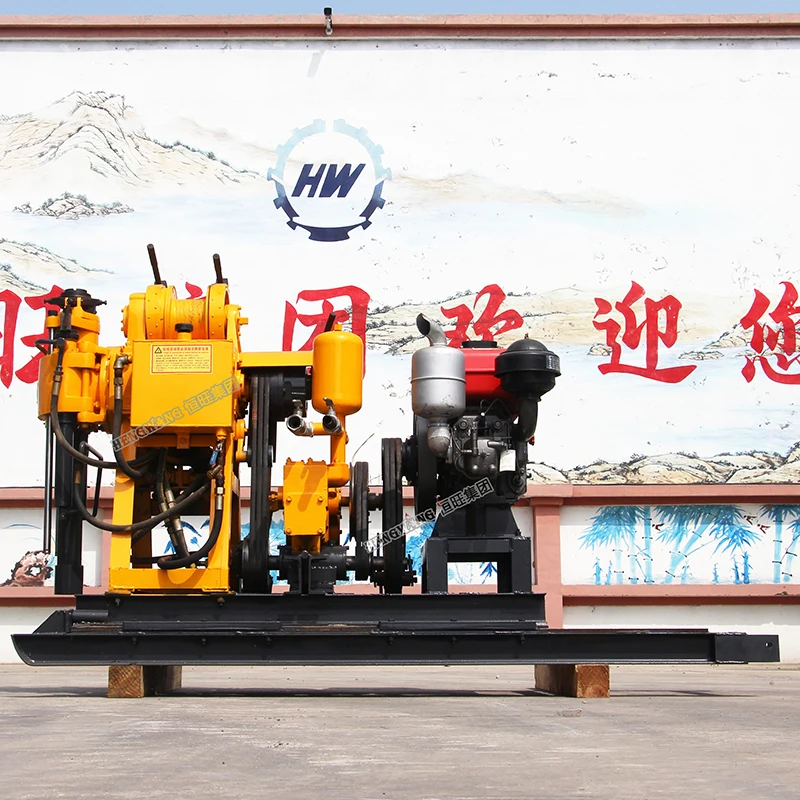

Factory direct sale 160m bore hole portable rotary water well drill rig

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    $5,500.00
  • >=5 Sets
    $5,300.00
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
2 Years
Place of Origin:
Shandong, China
Brand Name:
hengwang
Usage:
Water Well
Voltage:
220V/380V
Weight:
600KG
Certification:
ISO
Type:
Core Drilling Rig
Power Type:
Diesel
Dimension(L*W*H):
2500*800*1300MM
Applicable Industries:
Farms, Construction works , Energy & Mining
Color:
Customer Required
Name:
hydraulic water well drilling rig
Application:
Water Wells
Drilling depth:
160m
Drilling diameter:
220-500mm
Feature:
High Drilling Efficiency
Engine:
Diesel Power
Spindle Speed:
570r/min
Dimension:
2500*800*1400MM
Model:
HW-160T
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training
Supply Ability
Supply Ability:
100 Set/Sets per Month hydraulic water well drilling rig
Packaging & Delivery
Packaging Details
wooden case
Port
shanghai qingdao dalian shenzhen ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Product Description

Product Application

HW series hydraulic drilling rig is a kind of widely used portable drill. It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, waterconservancy, bridge, dam foundation and other buildings. Accounding to different strata, it drills by choosing diamond, composite plms and alloy.

                                                                SPECIFICATION FOR HYDRAULIC DRILLING RIG
Model
HW-160
HW-190
HW-230
Drilling depth
160m
190m
230m
Open hole dia. soil/sock
500/220mm
500/220mm
500/273mm
End hole dia
75mm
75mm
75mm
Drill rod dia
42/50mm
42/50mm
42/50/60mm
Drill angle
90-75°
90-75°
90-75°
Engine power
13.2KW
13.2KW
15KW
Weight
600KG
620KG
880KG
Size
2.4*0.8*1.3m
2.4*0.8*1.4m
2.7*0.9*1.5m

Main Features

1) It improves drilling effciency and reduces labor intensity with hydraulic automatic feeding machanism.

2) It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.

3) It has hole bottom pressure gauge to be easy to master the situation in the hole.

4) It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition,easy to move. It can be operated in plains and pountain areas.



Certifications

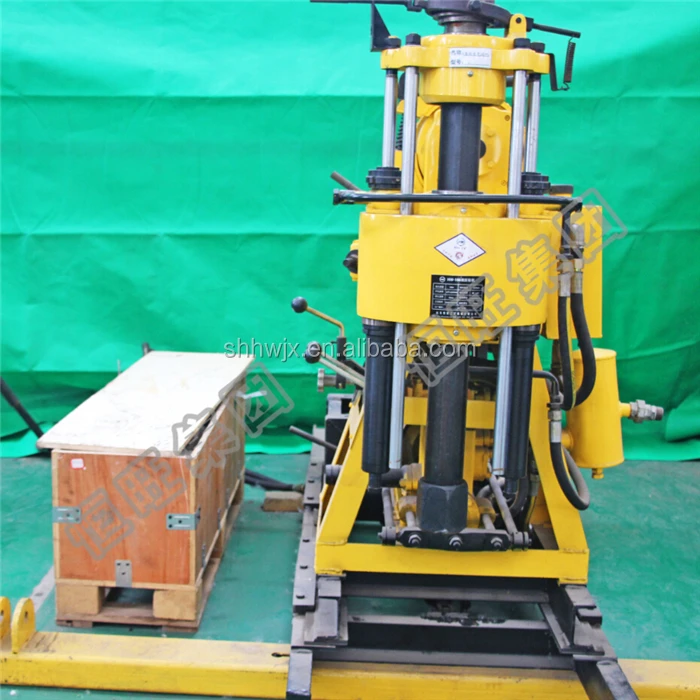

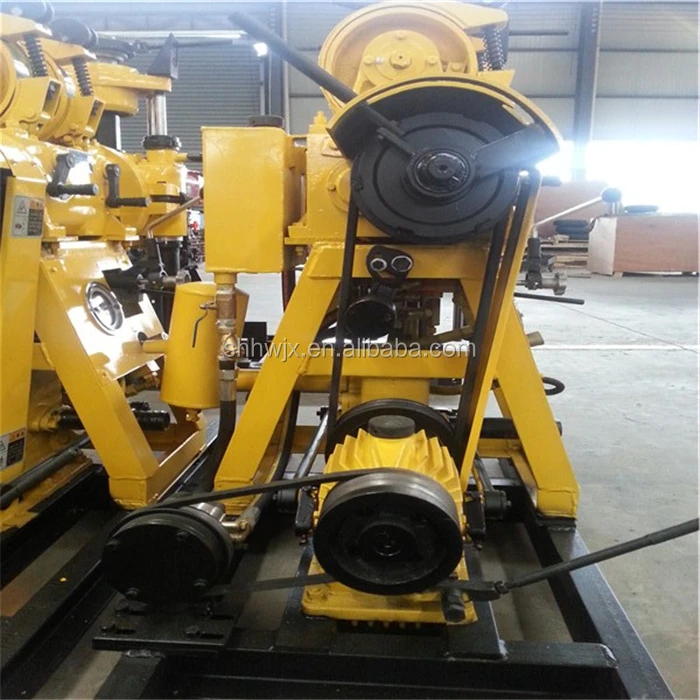

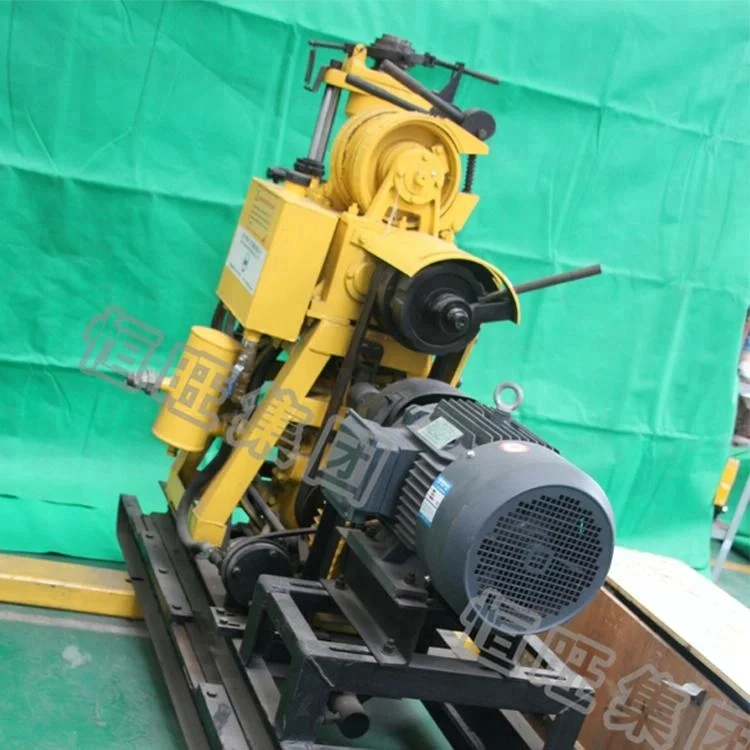

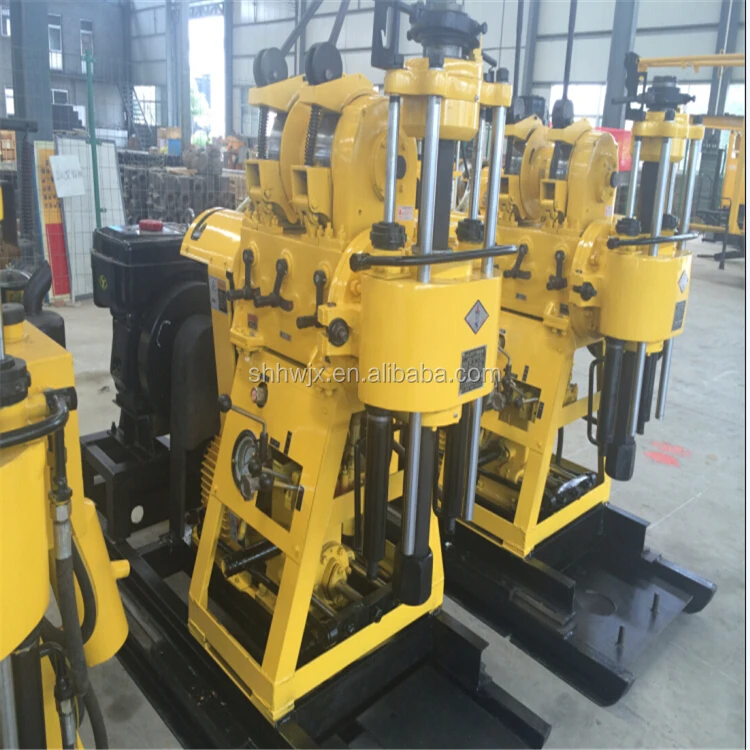

Detailed Images

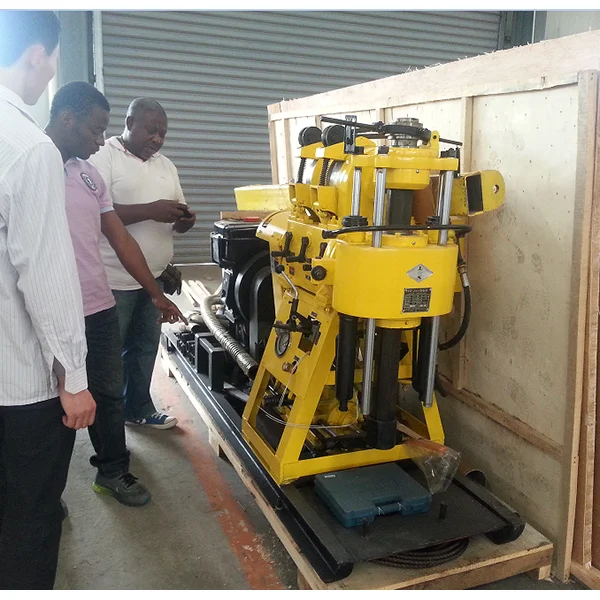

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3.0*1.0*1.6m
Weight
900KG



Packaging Details

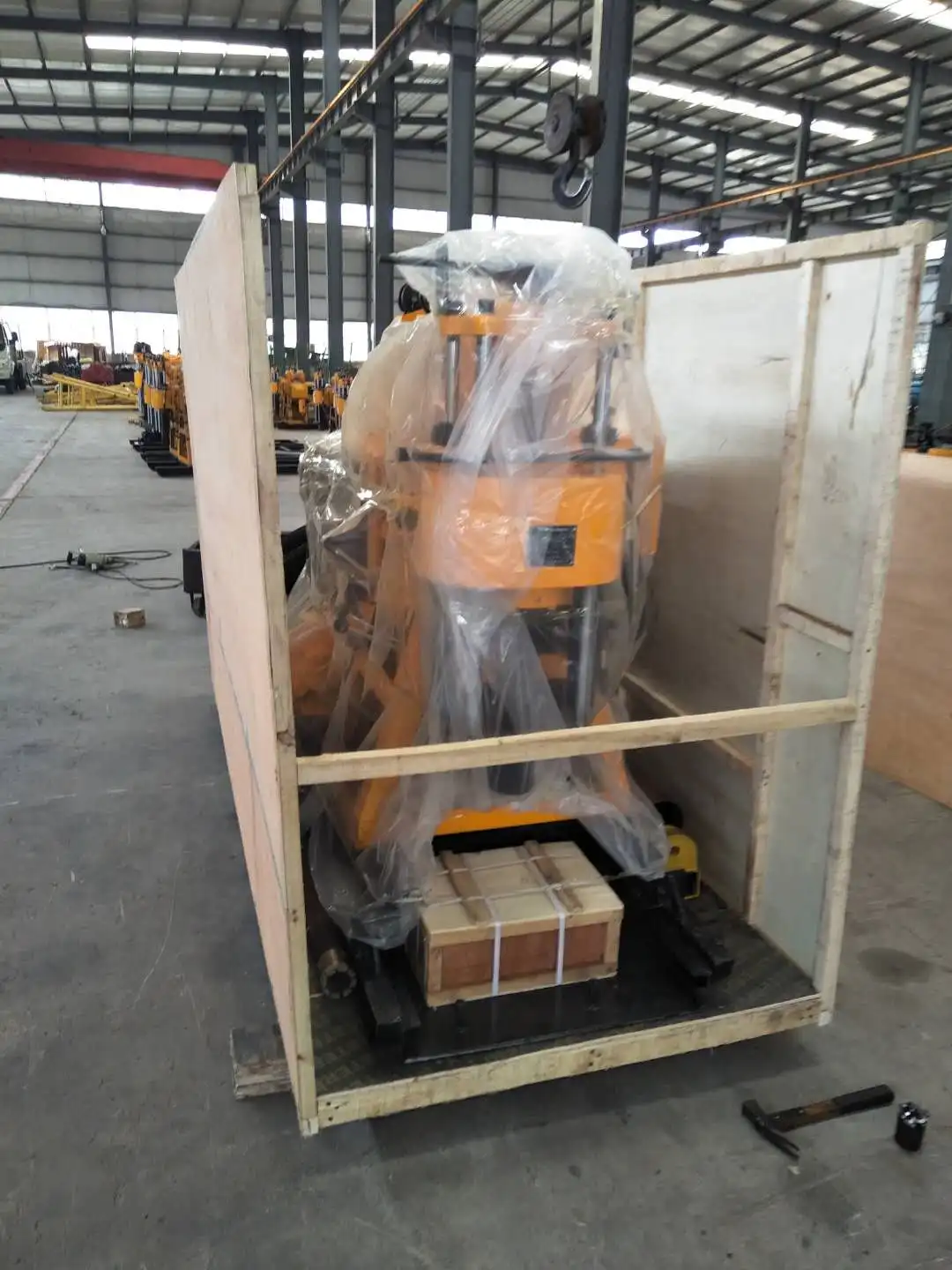

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
