3 cubic meters self loading concrete mixer truck price
- Model Number:
- HW-M32
- Shipping:
- Support Sea freight
- Lead Time:
-
Quantity(Sets) 1 - 5 >5 Est. Time(days) 5 Negotiable
- Customization:
-
Customized logo (Min. Order: 1 Sets)Customized packaging (Min. Order: 1 Sets)
More
Graphic customization (Min. Order: 1 Sets) Less
- Condition:
-
New
- Place of Origin:
-
Shanghai, China
- Brand Name:
-
Hengwang
- Weight:
-
7800kgs
- Dimension(L*W*H):
-
6700*2600*3200mm
- Power:
-
85kw
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Video technical support
- Product name:
-
3 cubic meters self loading concrete mixer truck price
- Name:
-
3 cubic meters self loading concrete mixer truck price
- Engine:
-
85kw diesel engine
- Driving type:
-
4WD
- Capacity:
-
3.2m3
- Water tank volume:
-
850L
- Hydraulic motor:
-
BMT-50-200
- Max walking speed:
-
24km/h
- Grade ability:
-
26%
- Min steering radius:
-
4500mm
- Supply Ability:
- 500 Set/Sets per Year 3 cubic meters self loading concrete mixer truck price
- Packaging Details
- as your requirements
- Port
- Shanghai, Qingdao
- Lead Time :
-
Quantity(Sets) 1 - 5 >5 Est. Time(days) 5 To be negotiated
Online Customization
Product Application

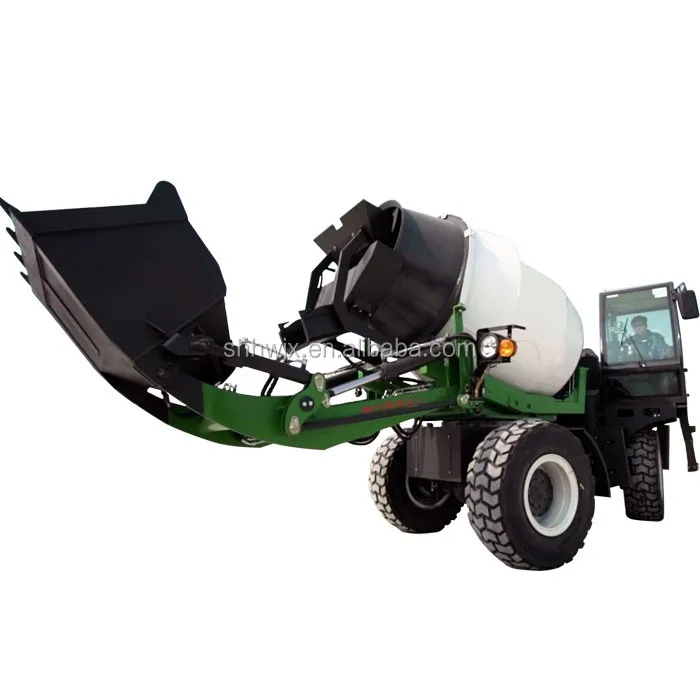

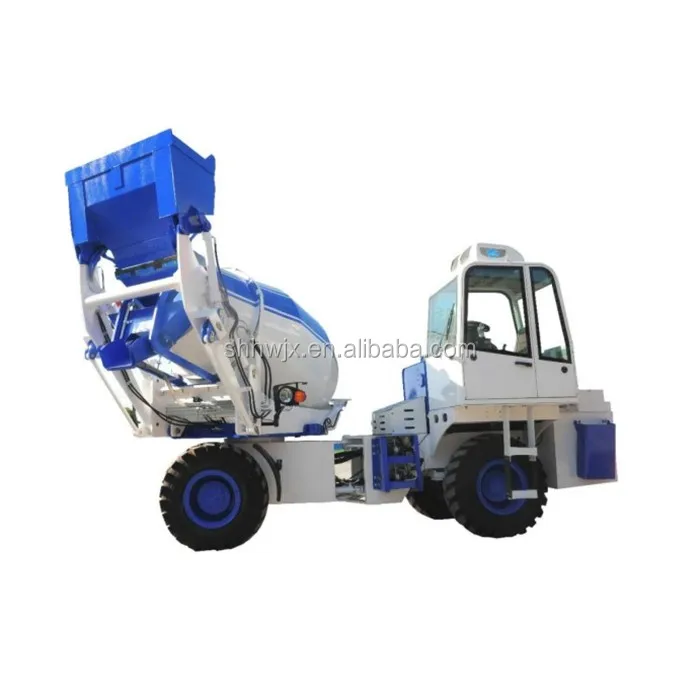

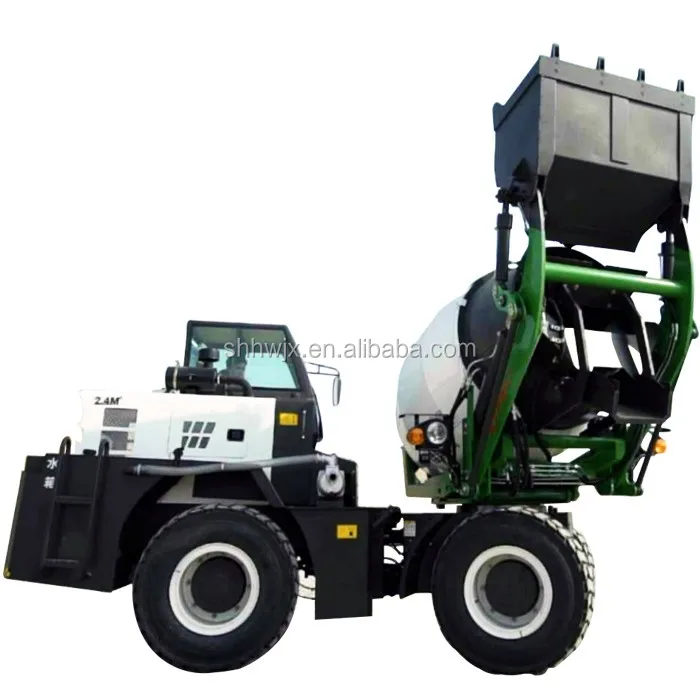

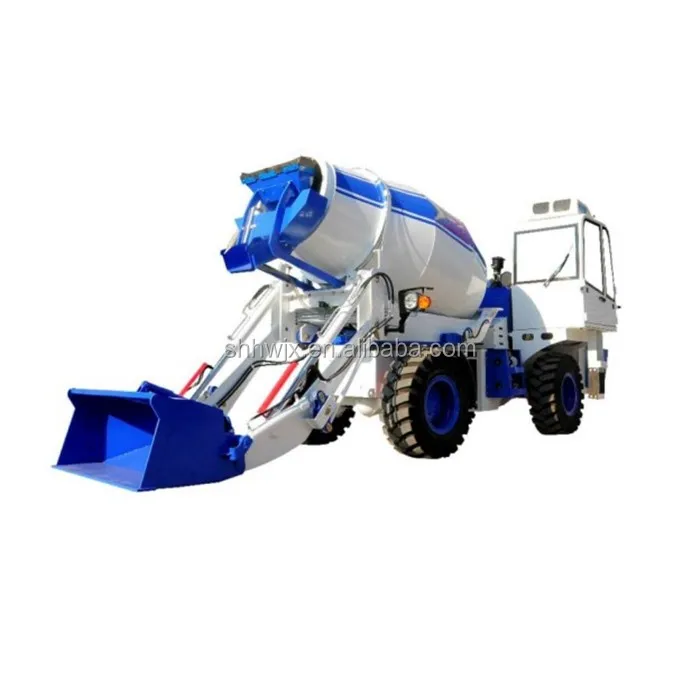

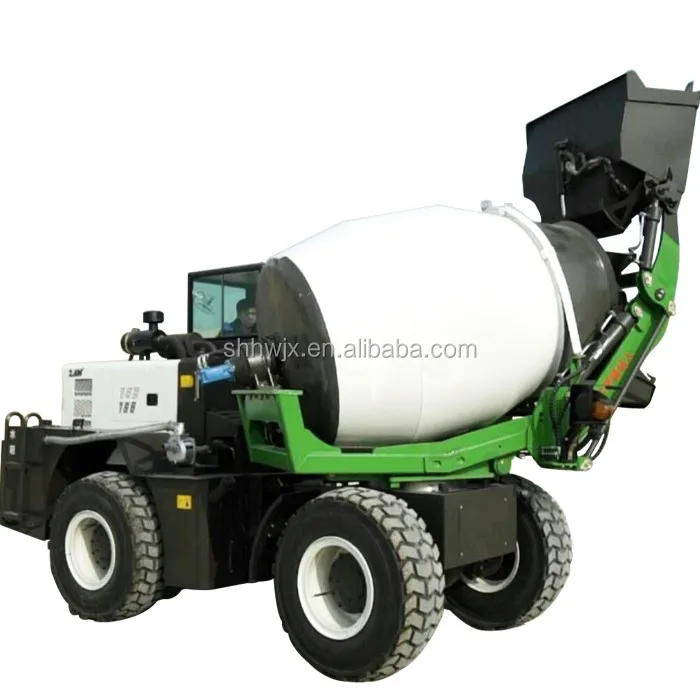

3 cubic meters self loading concrete mixer truck price, it can automatically feed, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel drive.
1. mixing part
actual mixing capacity: 3m3
rotary drum capacity: 3.2m3
tilt angle: 16°
ratation speed: 8-12r/min
direction of rotation: feeding: clockwise,
unloading: counter clockwise
mixing drum blade: 2 sets of spiral bladesand 4 sets of auxiliary blades
slump of concrete: 70-260mm
2. hydraulic power transmission system
pump model: CBGV-5063
hydraulic motor: BMT-50-200
reducer ratio: 1:36
3. water supply
tank capacity: 850L
water supply form: auto timing water supply mechanism with auto timing
4. chassis and engine
straight injection type 4-stroke water cooled supercharged diesel engine
power: 85kw
max. running speed: 24km/h
min steering radius: 4500mm
climbing ability: 26%
driving way: 4x4
max load capacity: 7500kg





Main Features
1. Saving time and labor
2. Saving concrete transporting cost
3. Mobile and highly motorized on site, more efficient
4. Low maintenance cost
5. High reliable and durable
6. Easy operation and high intelligent
7. Closed circuit hydraulic system, more powerful and reliable.
