self loading small concrete mixer truck price

FOB Reference Price:Get Latest Price
$14,000.00 - $14,800.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
HW-M12
Concrete Output:
1.2m3
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Power(W):
55kw
Weight:
7380kgs
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Video technical support, Online support
Place of Origin:
Shanghai, China
Brand Name:
Hengwang
Dimension(L*W*H):
6100*1850*3000mm
Applicable Industries:
Construction works
UNIQUE SELLING POINT:
High operating efficiency
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Product name:
self loading small concrete mixer truck price
Name:
self loading small concrete mixer truck price
Engine:
55kw diesel engine
Driving type:
4WD
Capacity:
1.2m3
Water tank volume:
540L
Hydraulic motor:
BMSS-250
Max walking speed:
24km/h
Grade ability:
26%
Min steering radius:
5000mm
Supply Ability
Supply Ability:
500 Set/Sets per Year self loading small concrete mixer truck price
Packaging & Delivery
Packaging Details
as your requirements
Port
Shanghai, Qingdao
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 5 To be negotiated
Video Description
Product Description

Product Application

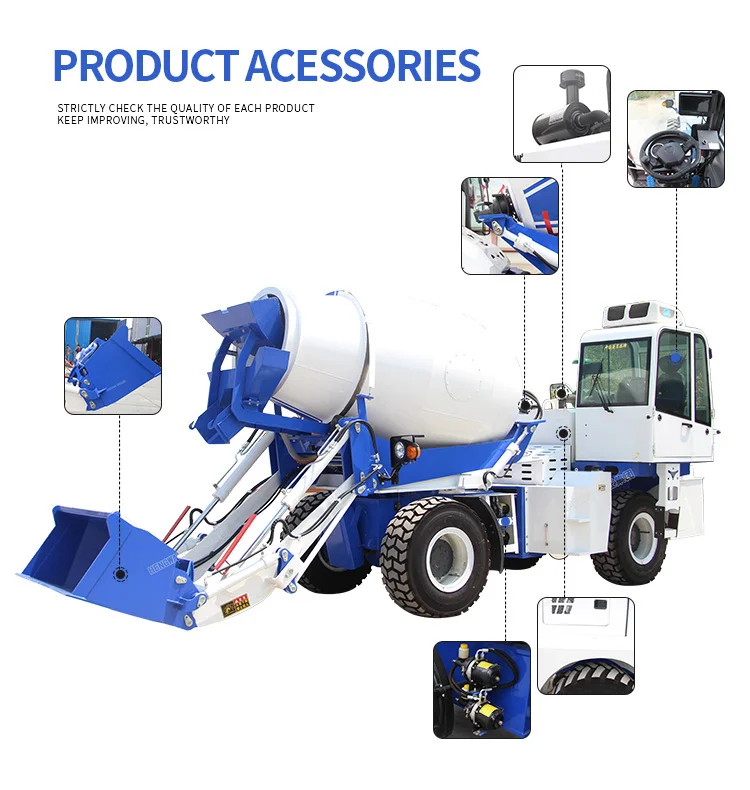

    self loading small concrete mixer truck price , it can automatically feed, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel drive.


1. mixing part

actual mixing capacity: 1.2m3
rotary drum capacity: 1.4m3
tilt angle: 16°
ratation speed: 1-14r/min
direction of rotation: feeding: clockwise,
unloading: counter clockwise
mixing drum blade: 2 sets of spiral bladesand 4 sets of auxiliary blades
slump of concrete: 70-260mm


2. hydraulic power transmission system
pump model: CBGV-4025
hydraulic motor: BMSS-250
reducerratio: 1:10

3. water supply
tank capacity: 540L
water supply form: auto timing water supply mechanism with auto timing

4. chassis and engine
straight injection type 4-stroke water cooled supercharged diesel engine
power: 55kw
max. running speed: 24km/h
min steering radius: 5000mm
climbing ability: 26%
driving way: 4x4
max load capacity: 2800kg
