portable used mini water well drilling rig machine price

  • >=1 Sets
    $6,000.00
Model Number:
HW-160
Power(W):
24hp
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Water Well
Weight:
960kg
Certification:
ISO
Type:
Rotary Drilling Rig
Power Type:
Diesel
Dimension(L*W*H):
2500*1000*1300MM
Applicable Industries:
Farms, Construction works , Energy & Mining
Application:
Water Wells Rock Drill Rig
Drilling depth:
100-150m
Drilling diameter:
75-300mm
Keyword:
Drilliing Rig
Drilling method:
Rotating
Drill rod length:
4m/ Piece
Drilling angle:
90-75
Drill pipe diameter:
50 mm
Diesel engine:
24hp
Working Pressure(bar):
0.7 Mpa
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export wooden box
Port
QINGDAO SHANGHAI
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Video Description














1.Rotary hydraulic motor drive ,controlled by one hand-operated direction valve,

can realizes the rotary box to output two  gears speed and two kinds of torque, in order to adapt the drill to different working conditions.



2.Originally imported walking motor possess the high ability ; Engineering crawler is sturdy and durable



3.Hydraulic winch can crane 1500kgs, and the lifting height is 6meters, which can be used in craning drills and well pipes.



4.Hydraulic supporting leg can rapidly adjust the drill level and gurantee the verticality of the well

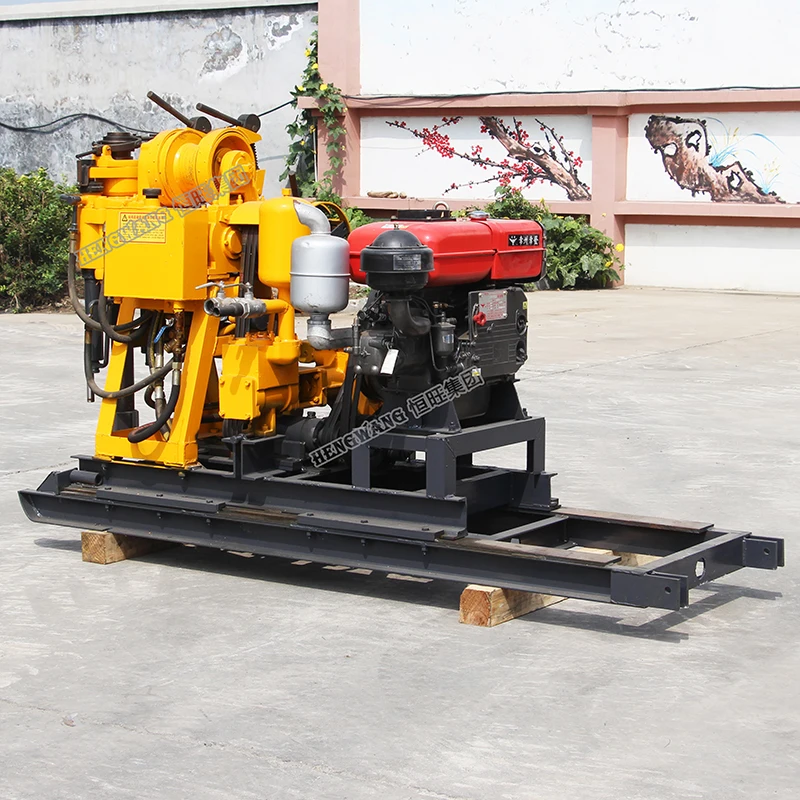

drilling rig.jpg



Specifications

Unity machine parameter

Drilling depth

10-130m

Maximum open hole caliber

260mm

End hole caliber

75mm

Drill rod caliber

50mm

Drilling angle

90~75

Drill weight (No include power)

510 560kg

Unity machine dimensions

2.5×1×1.3 2.5×0.9×1.3m

Spindle

spindle speed

142,285,570r/min

Spindle stroke

450mm

Hoist

Max.single line hoisting capacity

960kg

Single line lifting speed

0.41,0.82,1.64m/s

Tightrope caliber

27m

Mud pump of HZ-130YY model drilling rig

Type

Horizontal single urn twin-action

Displacement

95/77L/min

Diesle engine

s1115 or 22HP

Electric motor

Y160M—4 11kw 1440r/min

Maximum pressure

1.2Mpa

Work pressure

0.7Mpa

Water inlet caliber

30mm

Water to exit caliber

25mm

Triangle conveyer belt

B1575mm




















FAQ

Q1. What is your terms of payment?

Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products andpackages before you pay the balance.



Q2. What is your terms of delivery?

Ans.: EXW, FOB, CFR, CIF.



Q3. How about your delivery time?

Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.

The specific delivery time depends on the items and the quantity of your order.



Q4. What is the warranty of our machine?

Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories

broken can be changed for a new one.And we provide videos for machine install and operation.



Q5. What is your terms of packing?

Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.



Q6. Do you test all your goods before delivery?

Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.



Q7.Do you Preferred provide wear parts for transacted clients?

Ans.: Yes, we have recor d s for your clients, and will  prefer  provid ing  accessories to clients.



Q8: How do you make our business long-term and good relationship?

Ans.: 1. We keep good quality and competitive price to ensure our customers benefits;                    2. We respect every customer as our friend and we sincerely do business and make friends with them, nmatter where they come from.



Q9.Do you have any certificates for your machine?

Ans.: All of our products coming with the certificates of CE, ISO9001.
