High Quality Similar to Darda Quarry Hydraulic Stone and Rock Splitter

  • 1 - 9 Sets
    $1,850.00
  • >=10 Sets
    $1,750.00
Power(W):
7.5kw
Model Number:
HWS-S80
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Samples:
$1,850.00 /Set | 1 Set (Min. Order) | Buy Samples
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Type:
Rock Splitter
Condition:
New
Warranty:
1 Year
Place of Origin:
China
Brand Name:
HengWang
Application:
stone,rock,block splitting
Certification:
ISO9001
Motor Type:
Other
Dimension(L*W*H):
450*410*700MM
Applicable Industries:
Building Material Shops, Farms, Construction works , Energy & Mining
Name:
Concrete Block Splitter
Usage:
Large Blocks Splitting
Key word:
Hydraulic Rock Splitter
Pump pack type:
Electrical Hydraulic Rock Splitter
Product name:
Concrete Stone Splitter Machine
Item:
Hydraulic Rock Breaker
Work pressure:
55-60Mpa
Splitting Diameter:
42-45mm
Capacity of tank:
25-45L
Drilling Depth (mm):
500-900mm
After-sales Service Provided:
Free spare parts, Field maintenance and repair service
Packaging & Delivery
Packaging Details
wooden case
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Video Description
Product Description

rock splitter,stone splitting wedge,darda hydraulic rock splitter

SPECIFICATIONS FOR HWS-S80 BLOCK SPLITTER
Model
HWS-S80250
HWS-S80350
HWS-S90250
Piston diameter
80mm
80mm
80mm
Drilling diameter
Φ42mm
Φ45mm
Φ50mm
drilling depth
≥500mm
≥550mm
≥600mm
cheese bloce length
250mm
350mm
450mm
Crck width
10-40mm
10-40mm
10-40mm
Splitting time
5-15s
5-15s
5-15s
Theory of separatist force
600t
600t
600t
The actul split force
480t
480t
480t
Weight
28kgs
29kgs
30kgs
HYDRAULIC ROCK SPLITER
Engine

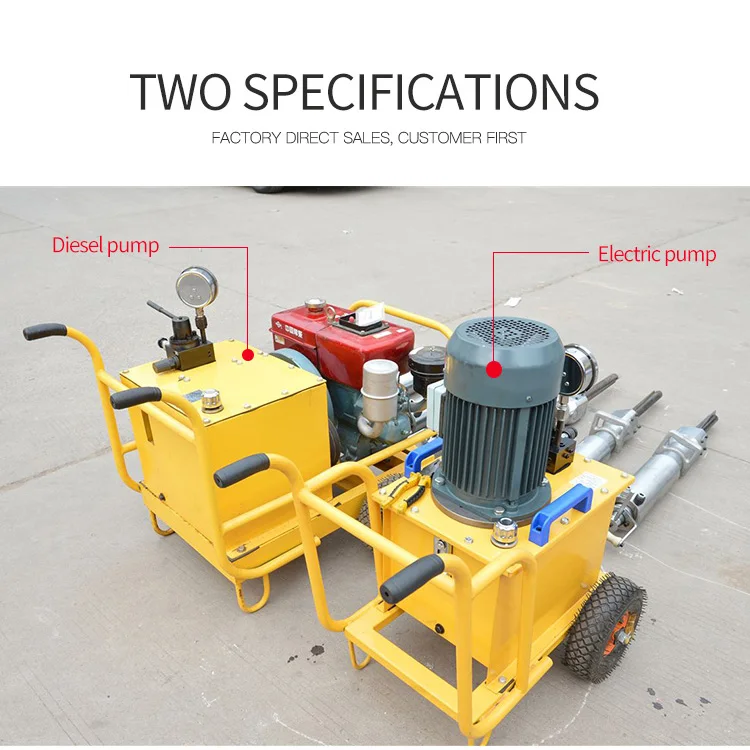

Electricity /Gasoline Engine
Weigt
60kgs
100kgs
150kgs
Capacity of tank
15L
40L
88L
Motor Power
1.5kw
4kw
7.5kw
Working Pressure(Mpa)
55-60
55-60
56-60
Working flow(L/min)
2-13
2-13
2-13
Configurable splitting machine number
1-2
2-7
2-10

Product Application

Rock splitter High quality gasoline or electrical Hydraulic rock spliter;concrete block splitter . It has many advantages:
1) Powerful( Max:1000T ), Hydraulic rock spliter; can split the stone or concrete easily.
2) High Efficiency, concrete block splitter can split the stone in 5-10 seconds.;
3) Long-life, the wedges stands wear and tear;
4) Easy to operate and maintain;

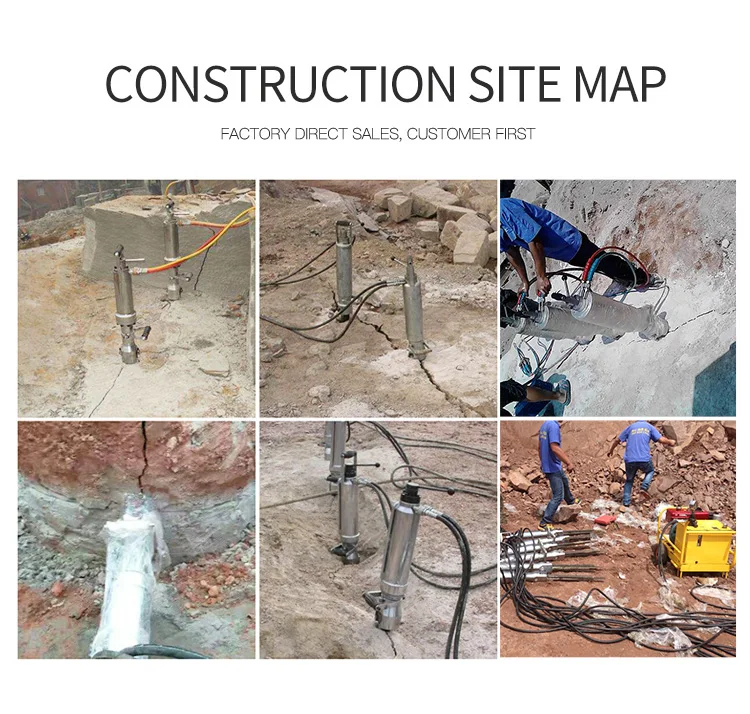

5) Now it is widely used in mineral mining(cave mining) , civil engineering construction and demolition. It is also an                indispensable tool in construction, river dredging, salvation etc.
6) Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type       of pump and cylinder you need. We will offer a very competitive price for you.

Main Features

1. Enormous splitting force up to 500 tons & vibration free
2. Dust free and near silent operation & Light weight and Easy handling
3. Different sizes of counter wedge and center wedge can use on the same splitter
